Homemade Hydraulic Crawler Water Well Drilling Rig Multifunctional

Homemade Water Well Drilling Rig

Product Description:

multifunctional crawler properly drill is a new,highly-effective ,energy-saving and multifunctional hydraulic drill and it is specialized in drilling nicely ,monitoring well, geothermal air-conditioning hole,grouting hole of the hydropower cofferdam,grouting gap for dyke seepage control and grouting gap for base enforcement ,surface mining ,anchorage .national defense task and other drilling operations;The drill rig is geared up with hydraulic motor rotation with a high power,propulsion and lifting of cylinder and down-hole impacter with excessive blast pressure,to realize excessive effectiveness of drilling footage and lowenergy consumption.

Feature:

1. Equipped with a 194KW Cummins brand 6-cylinder turbo engine with strong power and long service life;

2. Patented design compound boom, double oil cylinder lift, strengthen the tower;

3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;

4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.

6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.

7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life

9. Equipped with dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump

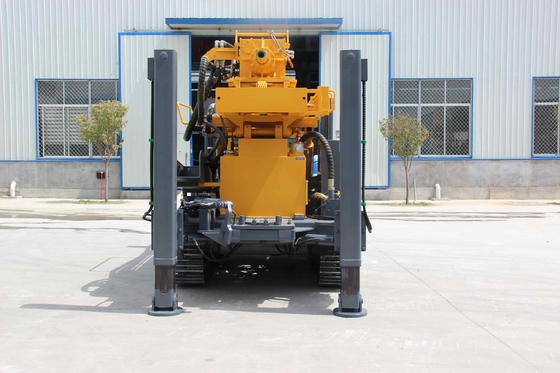

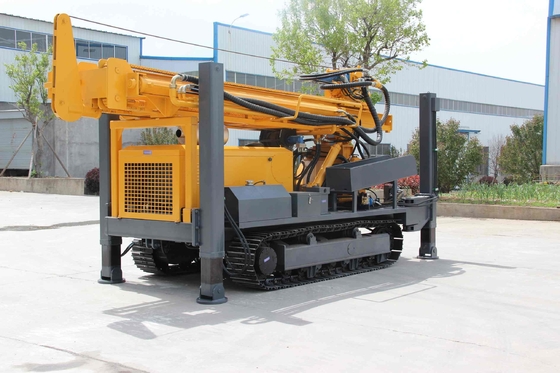

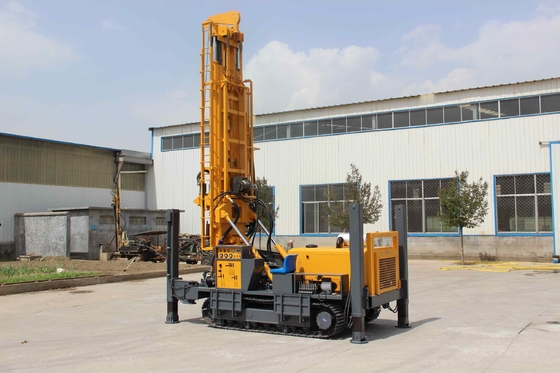

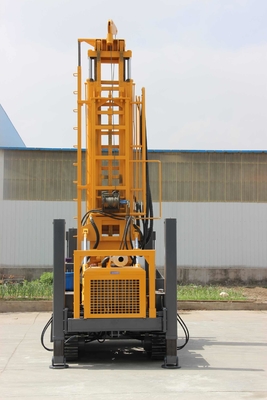

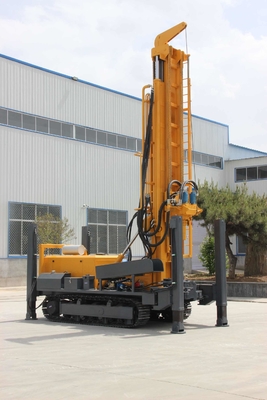

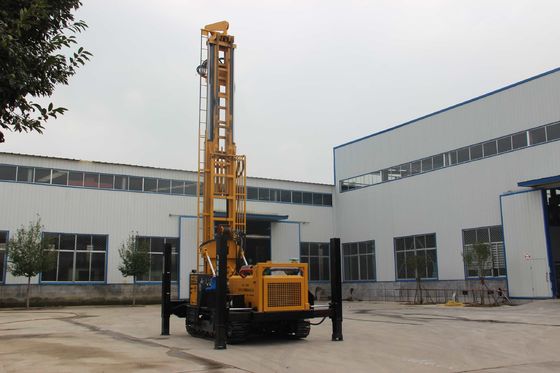

Product display:
