MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm

MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm
MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm

Large Image :  MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT410
Payment & Shipping Terms:
Payment Terms: T/T
Contact Now

MDT410 Hydraulic Crawler Drilling Rig Depth 25m Hole Dia 90-115mm

Description
Highlight:

90mm Hydraulic Crawler Drilling Rig

,

25m Hydraulic Crawler Drilling Rig

,

25m borehole drilling machine

Blasting Quarry Rock Sand Borehole Drilling Machine KG410/KG410H( Depth 25m Dia.hole 90-115mm )
Product Description
Blasting Quarry Rock Sand Borehole Drilling Machine MDT410/MDT410H( Depth 25m Dia.hole 90-115mm )
The MDT410/MDT410H down the hole drill rig foropen use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment.

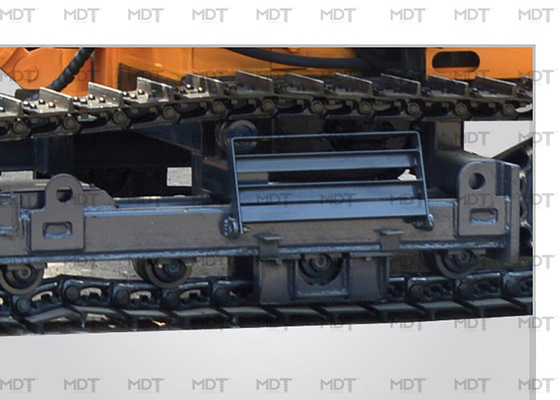

The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity.

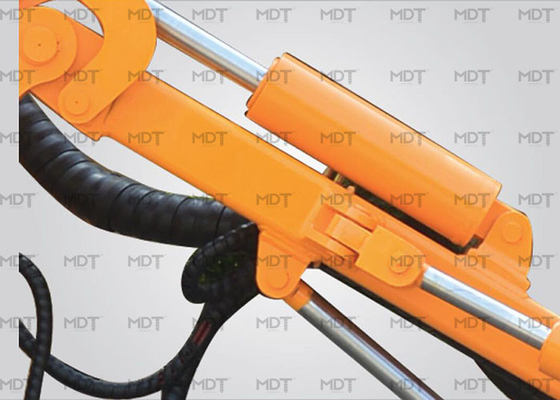

The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and
reliability.

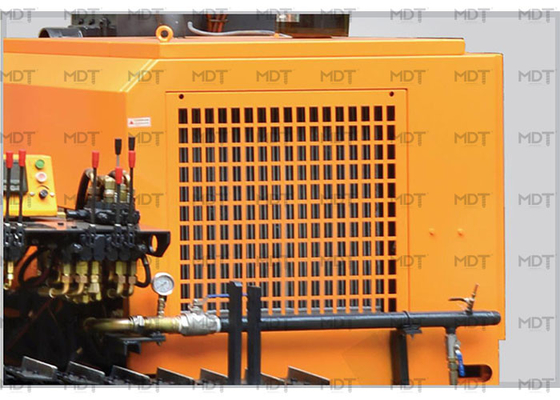

The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the
additional ring makes handling and lifting convenient.

Size Information
Model
MDT410
MDT410H
Weight
4500kg
4700kg
Size of drill machine
6000X2100X2000mm
6000X2350X2000mm
Rock rigidity
f=6-20
Diameter of hole
Φ90-115mm
Depth of economical drilling
25m
Rotation speed
0-120r/min
Rotation torque
1800N·m
Lift power
4000N
Feed way
Motor-roller chain
Feed distance
3980mm
Walk speed
0-2.5Km/h
Grade ability
30°
Ground clearance
280mm
Pitch angle of beam
Blow 135°,up50°, total 185°
Swing angle of beam
Left100°,right45°,total 145°
Pitch angle of drill arm
Blow 50°,up25°, total 75°
Swing angle of drill arm
Left45°,right45°,total 90°
Leveling angle of track
±10°
Compensation length of beam
900mm
Power
YCD4R23T8-80 (59KW/2400r/min)
Drill pipe
64X3000mm
Air consumption
10-17m³/min
Max height of horizontal hole
2950mm
Min height of horizontal hole
750mm
