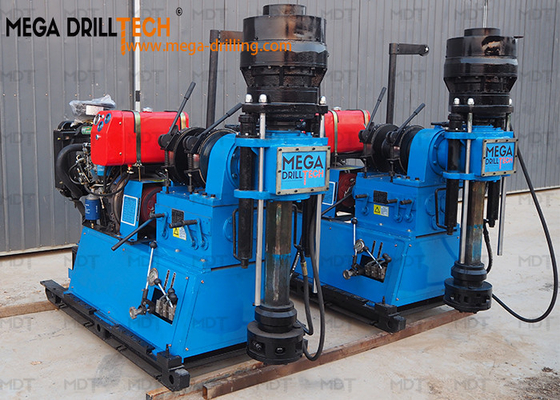

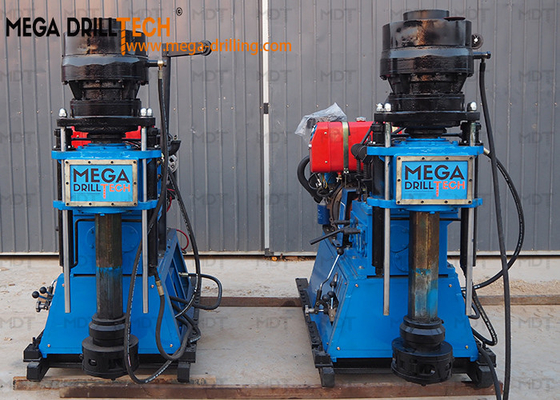

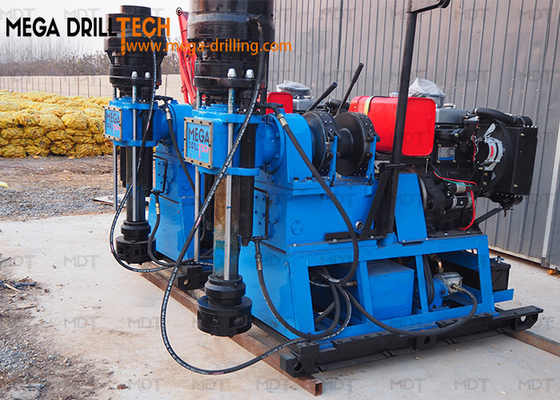

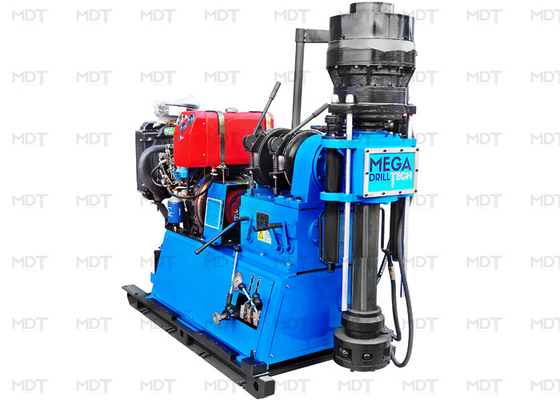

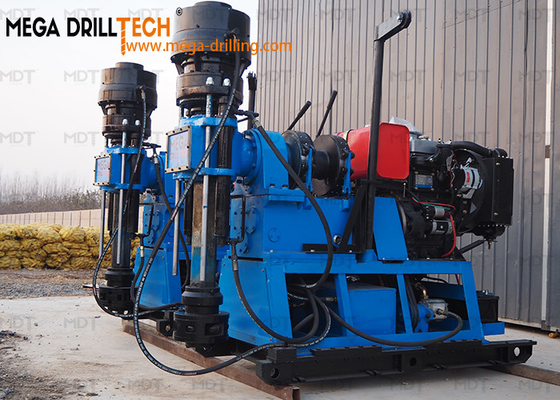

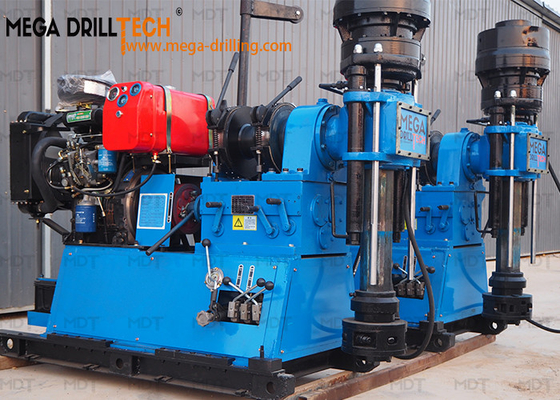

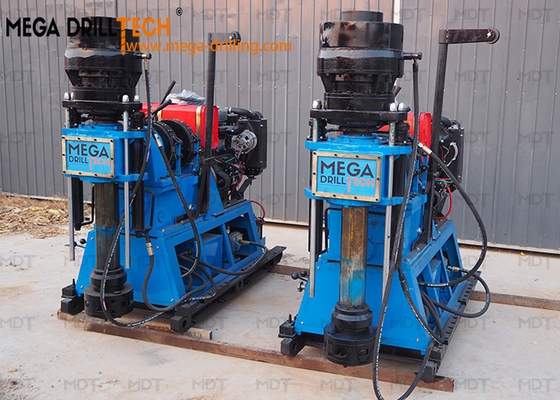

YBM Type 900r/Min Spindle Drilling Rig High Speed For Water Well
200m Drilling, Drilling Machine, Water Well,Deep Well Drilling Rig, No Need Kelly Rod, YBM Type Drilling
MDT-200D Drilling rigl is based on MDT-200A ,its adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
No need kelly rod.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 200m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 50mm |
| Gross weight(including the engine | 850kg |
| Revolving Plate | |
| Spindle speed | 900 478 388 205 1 57 68 r/min |
| Spindle speed(reversal) | 256 85 |
| Maximum torque | 2000N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter | |
| Lifting capacity(single pipe) | 3,0000N |
| Bobbin linespeed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Rope diameter | 12.5mm |
| Rope capacity | 30m |
| Drive motor | |
| Type | ZS1110 |
| Rated power | 13.2KW |
