Product Details:
|
Highlight: | Borehole Water Well Drill Rig,180m Depth Well Drill Rig |
---|
Product Description:

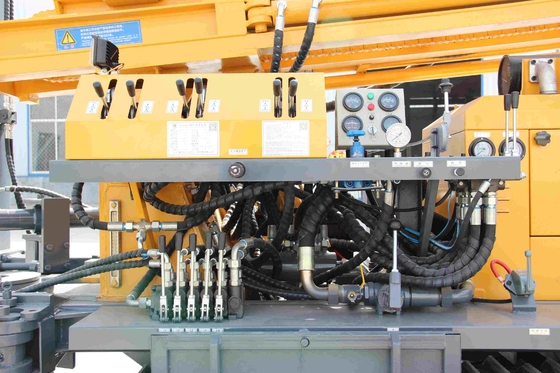

1. Dual motor rotating mechanism 2.Centralized operating system 3.Double cylinder propulsion system 4..Latest hydraulic technology, assorting with the high torque rotary hydraulic motor and the large diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality. 5.stable traveling system 6.Triple pump assemble
Specification:
Technical Parameters of FYX180 Crawler Type Water Well Drilling Rig | |
The weight | 4.5T |
Dimension | 3950*1630*2250mm |
The hole diameter | 140-254mm |
Drilling depth | 180m |
One-time advance length | 3.3m |
Walking speed | 2.5KM/H |
Climbing angles | 30 |
Power | 55kw |
Using air pressure | 1.7-2.5MPA |
Air consumption | 17-31 |
Drill pipe length | 1.5m 2.0m 3.0m |
Drill pipe diameter | 76mm,89mm |
Rig lifting force | 12T |
Swing speed | 45-65rpm |
Swing torque | 3200-4600N.m |
