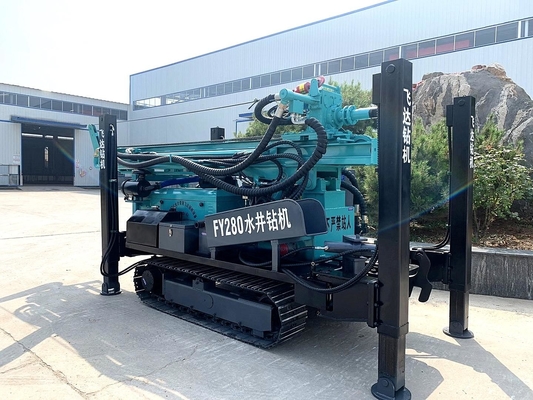

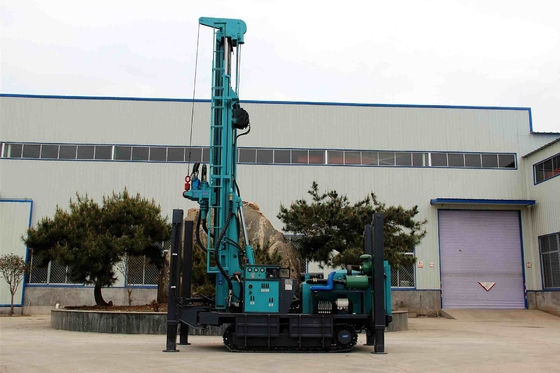

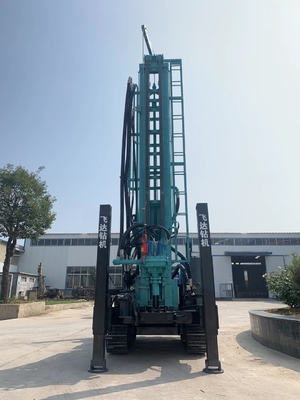

Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine

Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine
Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine

Large Image :  Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine

Product Details:
Brand Name: MEGA DRILLTECH
Payment & Shipping Terms:
Minimum Order Quantity: 1

Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine

Description
High Light:

75KW Water Well Drilling Rig

,

Yuchai Engine Hydraulic Drilling Rig

Water Well Drilling Rig Manufacturers

Product Description:

1. Engine: adopts the well-known brand Yuchai 75KW engine
2. Crawler driving gear: the designed motor with a pace reduction gearbox prolongs the service existence
3. Hydraulic oil pump: It uses parallel gearbox to separate oil pump monomer, supply enough power and distribute reasonable. The hydraulic system adopts special design, which is easy to maintain and can decrease the maintenance cost
4. Rotary head device: integrated casting gearbox , twin motor power, large torque, durable
5. Drill chassis: the professional excavator chassis presents durability and strong load capacity, the vast roller chain plate causes small injury to the concrete pavement
6. Lifting force: designed composite arm with small size yet lengthy stroke, double cylinder lifting, strong lifting capacity
7. The raise arm is installed with a limiter to protect cylinder and make sure the safety of work
8. Each hydraulic tubing is covered with a protecting shell to effectively extend the provider life of pipeline

Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine 0Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine 1Hydraulic Oil Pump Water Well Drilling Rig With Yuchai 75KW Engine 2



Specification:

The weight(T)
7.6
Drill pipe diameter(mm)
Φ76 Φ89
The hole diameter(mm)
140-305
Drill pipe length(m)
1.5m 2.0m 3.0m
Drilling depth(m)
280
Rig lifting force(T)
17
One-time advance length(m)
6.6
Rapid rise speed(m/min)
25
Walking speed(km/h)
2.5
Fast feeding speed(m/min)
30
Climbing angles(Max.)
30
Width of loading(m)
2.7
Equipped capacitor(kw)
75
Hoisting force of winch(T)
2
Using air pressure(MPA)
1.7-3.0
Swing torque(N.m)
4500-6000
Air consumption(m³/min)
17-31
Dimension(mm)
5900×1850×2360
Swing speed(rpm)
40-70
Equipped with hammer
Medium and high wind pressure series
The penetration efficiency(m/h)
15-35
High leg stroke(m)
1.4
