Product Details:
|
| Highlight: | Dual motor Water Well Drilling Rig,deep water drilling machine for sale,100-200 meters deep water drilling machine100-200 meters deep water drilling machine |
||
|---|---|---|---|

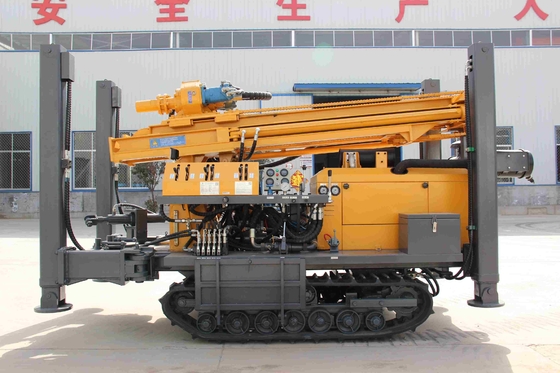

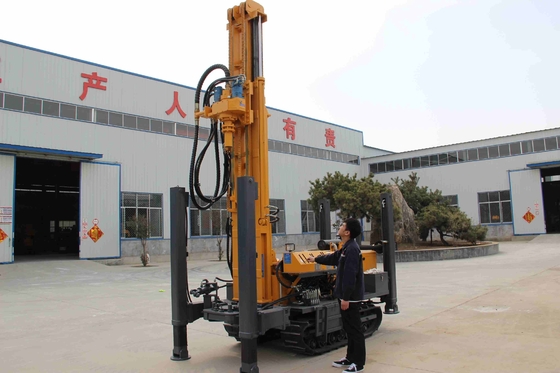

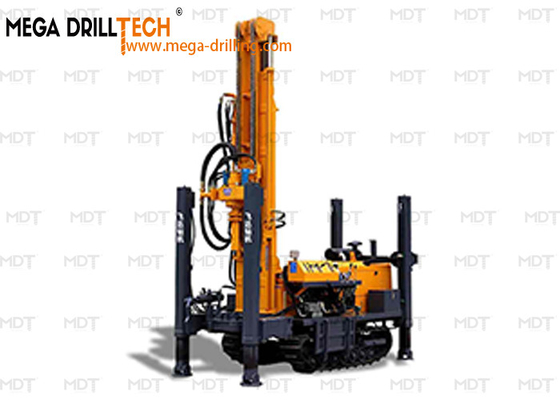

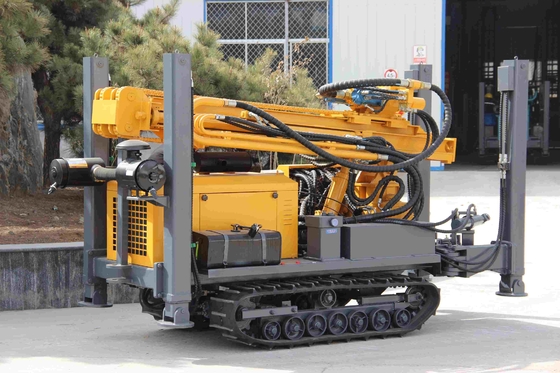

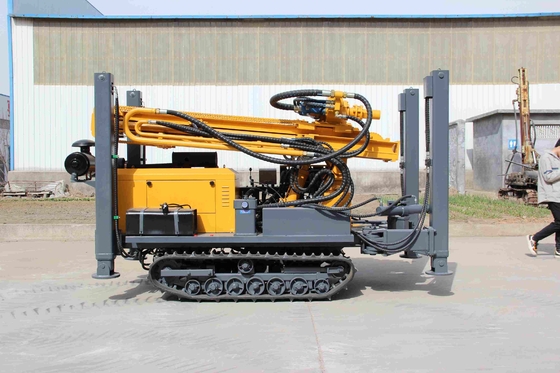

Water Well Drilling Rig
Main features of China brand 100-200 meters deep water drilling machine for sale
1.Dual motor rotating mechanism
2.Centralized running system
3.Double cylinder propulsion system
4..Latest hydraulic technology, assorting with the excessive torque rotary hydraulic motor and the giant diameter hydraulic cylinder propulsion, appreciably limit the labor intensity, shorten the auxiliary time, enhance the effectivity of development and engineering quality.
5.stable journeying system
6.Triple pump collect
Product parameters:
| Technical Parameters of FYX180 Crawler Type Water Well Drilling Rig | |
| The weight | 4.5T |
| Dimension | 3950*1630*2250mm |
| The hole diameter | 140-254mm |
| Drilling depth | 180m |
| One-time advance length | 3.3m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 55kw |
| Using air pressure | 1.7-2.5MPA |
| Air consumption | 17-31 |
| Drill pipe length | 1.5m 2.0m 3.0m |
| Drill pipe diameter | 76mm,89mm |
| Rig lifting force | 12T |
| Swing speed | 45-65rpm |
| Swing torque | 3200-4600N.m |
