200M Water Well Drilling Rig Machine

Description

Product Description:

Using the principle of pneumatic impact, the drilling footage is fast and efficient.

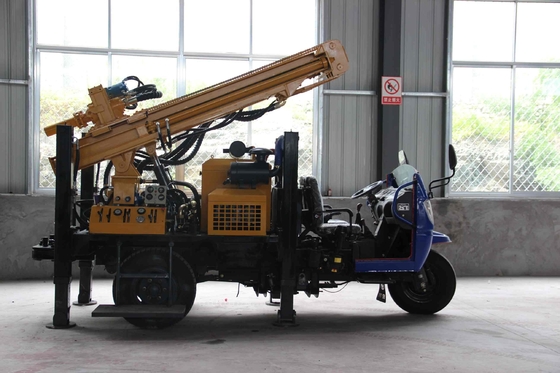

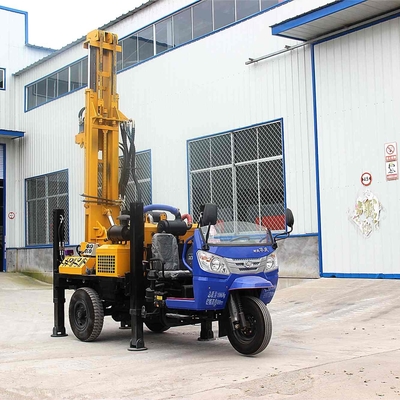

The automobile chassis adopts an agricultural three-wheeled vehicle with a reasonable and compact layout and easy operation.
Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable.
The main engine is equipped with a high-power diesel engine with strong power to meet work needs.

Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.

200M Water Well Drilling Rig Machine 0200M Water Well Drilling Rig Machine 1200M Water Well Drilling Rig Machine 2

The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.

The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
Equipped with quick rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
Centralized operating handles, reasonable layout, safe and feasible.
Excellent workmanship, durable, and low maintenance costs.

Specification:



The weight
(T)
4.7
Drill pipe diameter
(mm)
Φ76 Φ89
The hole diameter
(mm)
140-254
Drill pipe length
(m)
1.5m 2.0m 3.0m
Drilling depth
(m)
200
Rig lifting force
(T)
13
One-time advance length
(m)
3.3
Rapld rise spoed
(m/min)
20
Walking speed
(km/h)
20-40
Fast feeding speed
(m/min)
40
Climbing angles
(Max.)
30
Width of loading
(m)
45-65
Equipped capacitor
(kw)
65
Hoisting force of winch
(T)
~
Using air pressure
(MPA)
1.7-2.5
Swing torque
(N.m)
3400-4700
Air consumption
(m³/min)
17-31
Dimension
(mm)
4350*1600*2450
The penetration efficiency
(m/h)
10-35
High leg stroke
(m)
1.4
