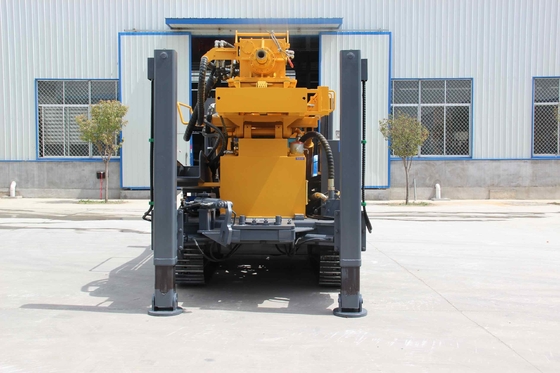

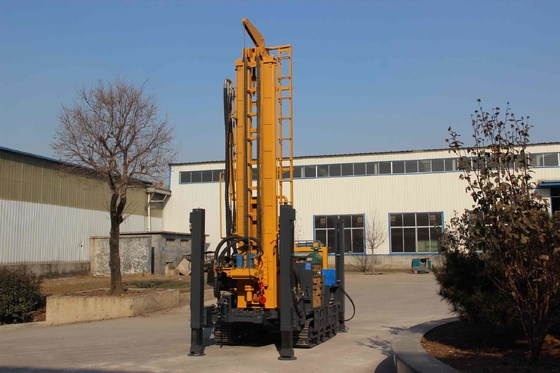

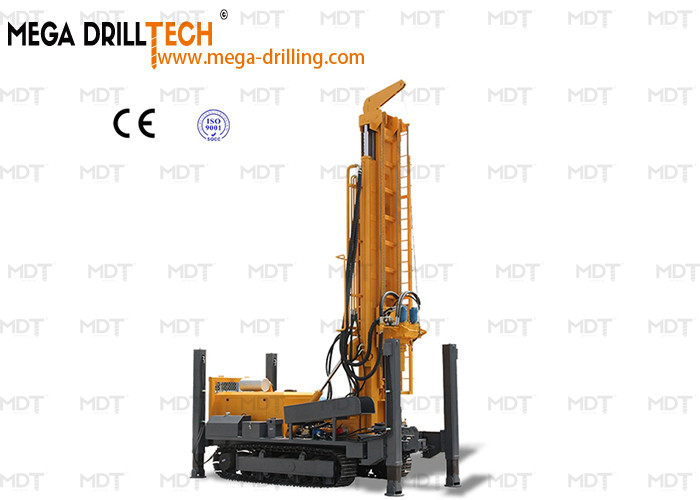

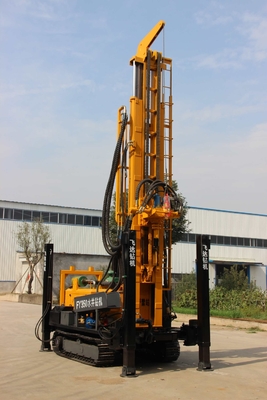

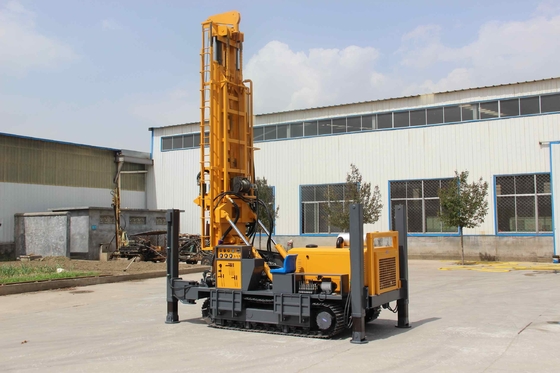

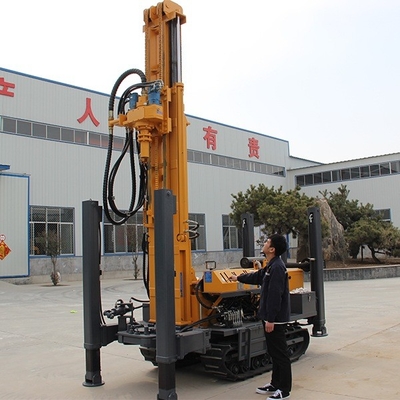

800M Water Well Drilling Rig

800M Water Well Drilling Rig
800M Water Well Drilling Rig 800M Water Well Drilling Rig 800M Water Well Drilling Rig 800M Water Well Drilling Rig 800M Water Well Drilling Rig 800M Water Well Drilling Rig

Large Image :  800M Water Well Drilling Rig

Product Details:
Brand Name: MEGA DRILLTECH
Payment & Shipping Terms:
Minimum Order Quantity: 1

800M Water Well Drilling Rig

Description
1: The Chassis Of The Drilling Rig Adopts A Professional Walking Motor With A Reduction Box, Which Has A Longer Life. 2: The Gearbox Is Cast In One Piece, With Dual Motors Providing Stronger Power, Larger Torque, More Durable, And Low Maintenance Costs.
3: The Use Of Professional Excavator Chassis, Strong And Durable, Large Load Bearing, Wide Chain Plate, Little Damage To Hard Roads.

Product Description:

Pneumatic Drilling Rig FeiDa pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.

800M Water Well Drilling Rig 0

800M Water Well Drilling Rig 1

The weight(T)
13
The hole diameter(mm)
140-400
Drilling depth(m)
800
One-time advance length(m)
6.6
Walking speed(km/h)
2.5
Equipped capacitor(Kw)
194
Using air pressure(MPA)
1.7-3.5
Air consumption(m³/min)
17-42
Swing speed(rpm)
45-140
The engine brand
Cummins engine
Drill pipe diameter(mm)
Φ102 φ108 φ114 φ117
Drill pipe length(m)
1.5m 2.0m 3.0m 6.0m
Fast rise speed(m/min)
20
Swing sorque(N.m)
9000-14000
Dimension(mm)
6300*2300*2650

800M Water Well Drilling Rig 2

Features:

1. Equipped with a 194KW Cummins company 6-cylinder faster engine with sturdy energy and lengthy carrier life;
2. Patented plan compound boom, double oil cylinder lift, reinforce the tower;
3. (Italy imported oil pump) three oil pumps, geared up with foam pump, winch, multi-function generator, the front outrigger swing arm oil cylinder;
4. Each drilling rig is outfitted with a baffle on the major arm to shield the oil cylinder;
5. The diameter of the gap is large, the gap is deep, and the advancing velocity is fast.
6. Drilling rig chassis: Reinforced metal crawler, massive chassis, robust and durable, heavy bearing, broad chain plate, massive tonnage.
7. Parallel transmission design, enough power, practical distribution, special hydraulic gadget design, easy upkeep and low cost.
8. The impartial warmness dissipation dual device adopts hydraulic oil temperature cooling and is outfitted with ordinary air cooling. lengthy engine life

9. Equipped with twin systems: 1. Air energy device with air compressor two Mud pump machine with mud pump
