Product Details:
|
1: | Dual Motor Rotating Mechanism | 2: | Centralized Working System |
---|---|---|---|
3: | Double Cylinder Propulsion System |
Product Description:
1.Geared up with 55kw yuchai organisation turbocharged engine with robust strength;
2.Patented graph compound increase, double cylinder lifting;
3.Every drilling rig is geared up with a baffle on the major arm to shield the oil cylinder;
4.Drilling rig chassis: specialist excavator chassis, strong and sturdy, heavy-obligation, vast chain plate, the drilling rig makes use of rubber tracks, excessive flexibility, much less damage to challenging roads.
5.Parallel transmission design, unbiased oil pump, sufficient strength, cheap distribution, unique hydraulic machine design, easy preservation and espresso fee.
6.The working computing machine is convenient and handy to operate
7.Easy to load and dump on the truck
8.Dual structures may additionally be brought: 1. air electrical energy laptop with air compressor two mud pump gadget with grime pump

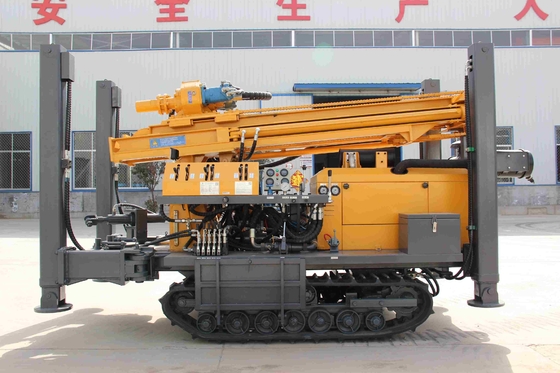

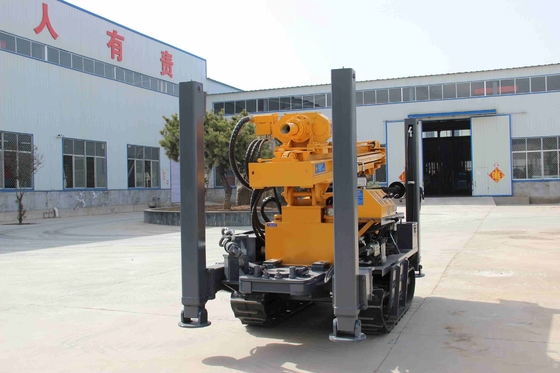

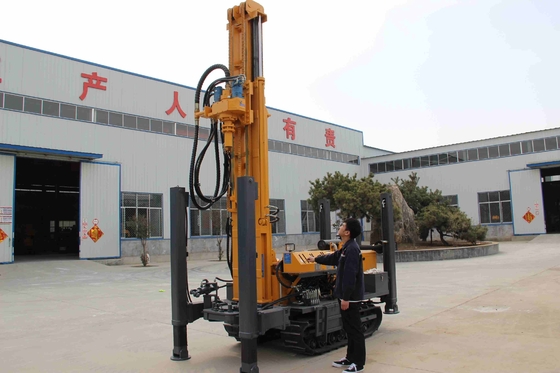

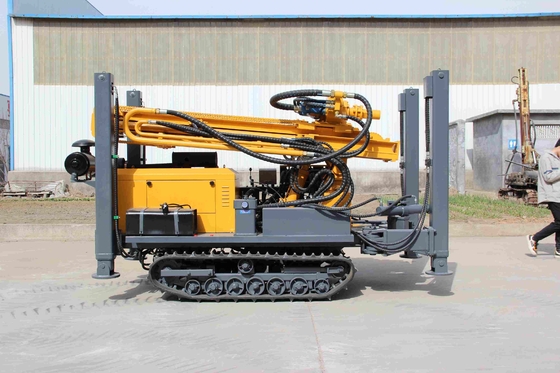

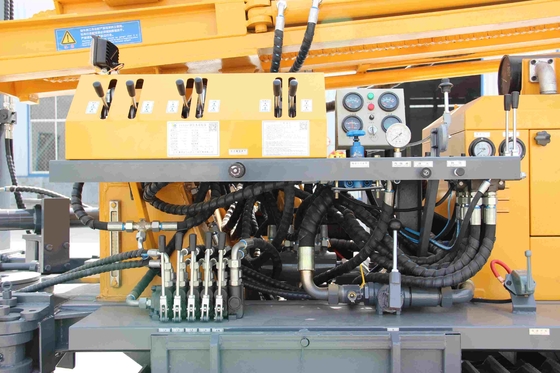

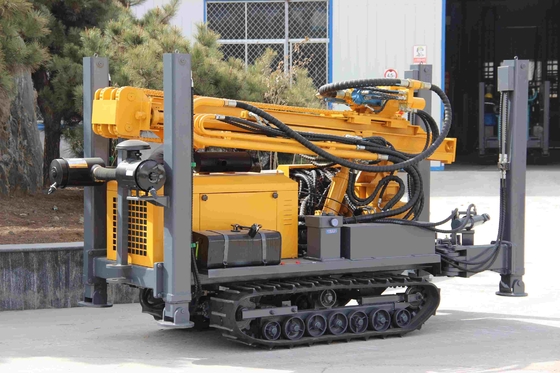

Product display:
The weight | 4.5T |
Dimension | 3950*1630*2250mm |
The hole diameter | 140-254mm |
Drilling depth | 180m |
One-time advance length | 3.3m |
Walking speed | 2.5KM/H |
Climbing angles | 30 |
Power | 55kw |
Using air pressure | 1.7-2.5MPA |
Air consumption | 17-31 |
Drill pipe length | 1.5m 2.0m 3.0m |
Drill pipe diameter | 76mm,89mm |
Rig lifting force | 12T |
Swing speed | 45-65rpm |
Swing torque | 3200-4600N.m |
