Product Details:
|
1.: | Full Hydraulic Control, High Drilling Efficiency | 2.: | Unique Design, Simple Drilling Structure |
---|---|---|---|
3.: | Small Size, Light Weight | 4.: | Very Flexible In Difficult Roads |
5.: | Easy To Transport, Can Learn How To Handle The Machine In Short Time |
Product Description:

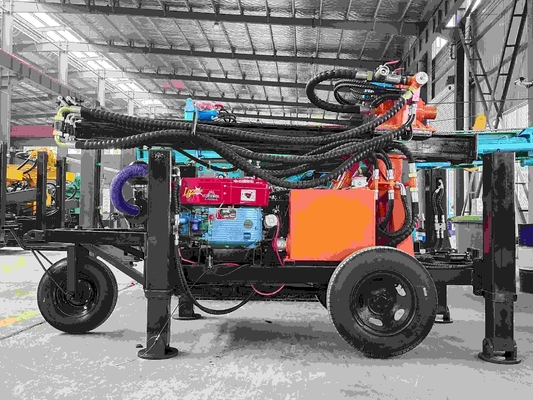

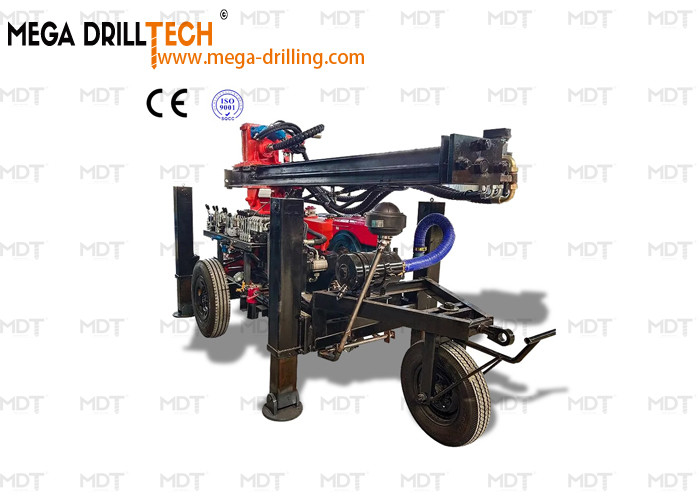

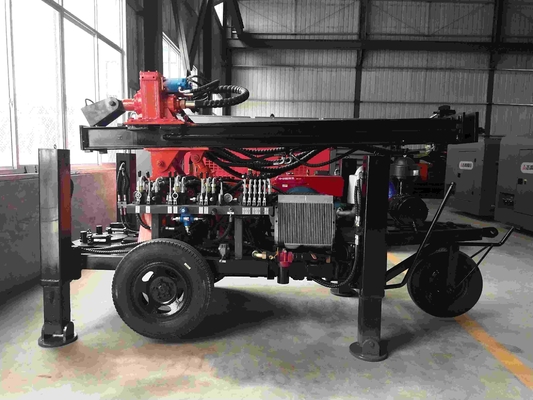

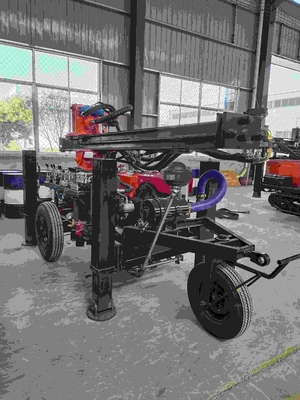

Wheel Water Well Drilling Rig Machine Depth 130m
Diesel engine hydraulic water well drilling machine borehole drilling rig hot sale
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
Product Specifications:
Item | Data |
The weight(T) | 3 |
The hole diameter(mm) | 100-219 |
Drilling depth(m) | 130 |
One-time advance length(m) | 2.3 |
Walking speed(km/h) | 3 |
Climbing angles(Max.) | 30 |
Equipped capacitor(KW) | 23 |
Using air pressure(MPA) | 1.45-2.5 |
Air consumption(m³/min) | 15-29 |
Drill pipe diameter(mm) | Φ76 Φ89 |
Drill pipe length(m) | 1.5m 2.0m |
Rig lifting force(T) | 6 |
Swing speed(rpm) | 40-65 |
Swing torque(N.m) | 2200-3000 |
Dimension(mm) | 4000×1450×2050 |
