Product Details:
|
| Highlight: | DTH Water Well Drilling Rigs,Crawler Water Well Drilling Rigs,Borehole Deep Well Drilling Machine |
||
|---|---|---|---|

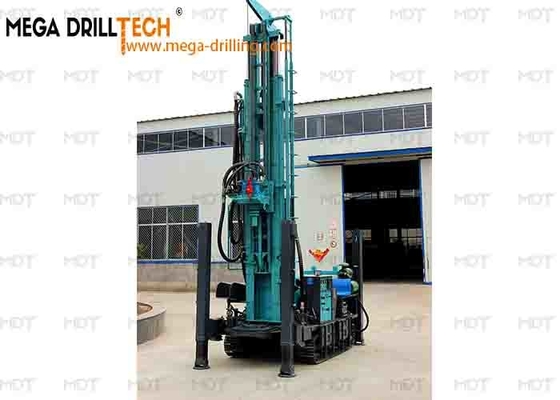

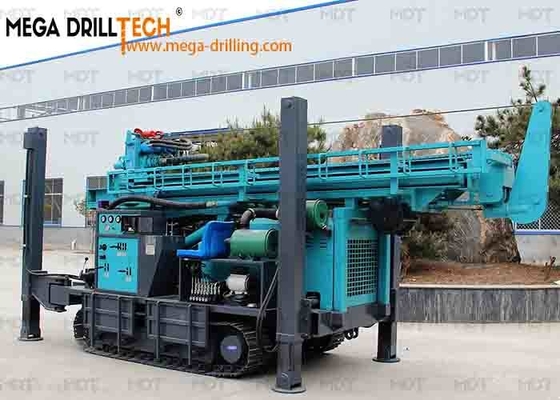

MDT-450 Drilling machine
Product Features:
1, it is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well,
agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
2, This machine can drill in different stratum, The maximum bore diameter can be 450mm.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4, Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5, This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Two gears rotation and feeding speed makes it work in soil and rock layers.
Specification:
| The weight(T) | 9.4 | Drill pipe diameter(mm) | Φ89 Φ102 |
| The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 450 | Rig lifting force(T) | 25 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30 | Width of loading(m) | 2.8 |
| Equipped capacitor(kw) | 103 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7000-9500 |
| Air consumption(m³/min) | 17-36 | Dimension(mm) | 5950×2100×2600 |
| Swing speed(rpm) | 50-135 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.6 |
| The engine brand | Weichai engine ( National III ) | ||
