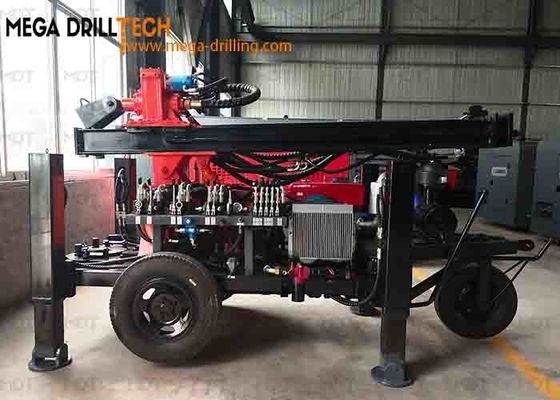

Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic

Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic
Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic

Large Image :  Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic

Product Details:
Place of Origin: CHINA
Brand Name: MEGA DRILLTECH
Certification: ISO-9001
Model Number: MDT-180
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Payment Terms: T/T
Supply Ability: 10units per month

Wheel Trailer Integrated Water Well Drilling Machine Small Portable Hydraulic

Description
High Light:

3T Water Well Drilling Machine

,

Hydraulic Water Well Drilling Machine

,

Wheel Trailer Well Drilling Rig

Wheel Trailer Integreted Water Well Drilling Machine,Wheel Trailer Small Portable Hydraulic Water Well Drilling Rig

MDT series deep(water) well-drilling rig uses full hydraulic control,

and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.





Diesel engine hydraulic water well drilling machine borehole drilling rig hot sale
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable
structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is
launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.



Main Specifications MDT-130
The weight 3T
The hole diameter 100-219mm
Drilling depth 130m
One-time advance length 2.3m
Walking speed 3km/h
Climbing angles(Max) 30
Engine power CHANGFA 23KW
Using air pressure 1.45-2.5MPA
Air consumption 15-29m³/min
Drill pipe diameter φ76/89mm
Drill pipe length 1.5/2.0m
Swing speed 40-65rpm
Swing torque 2200-3000N.M
Dimension(mm) 0.63850*1560*2050
High leg stroke(m) 5400*1900*2500mm
