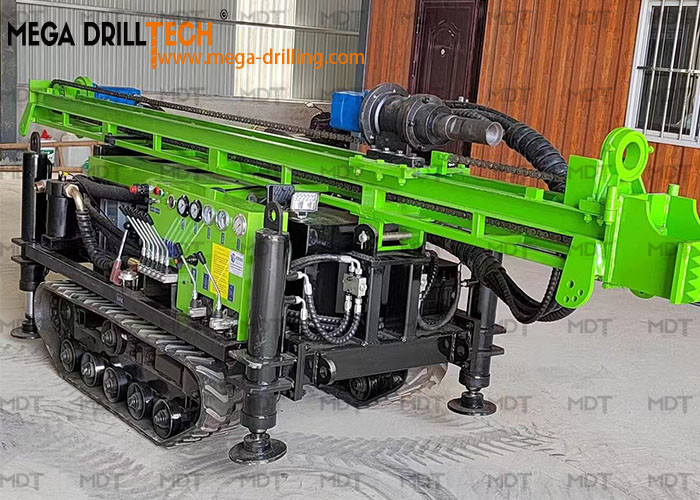

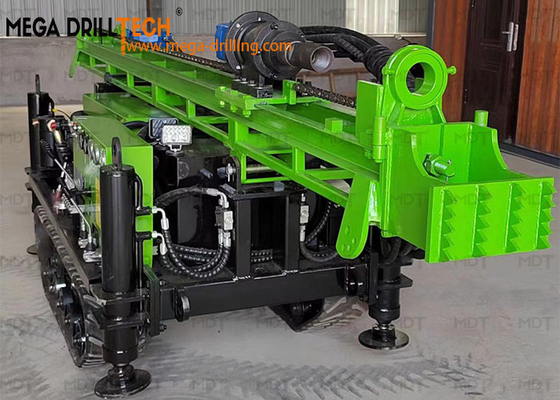

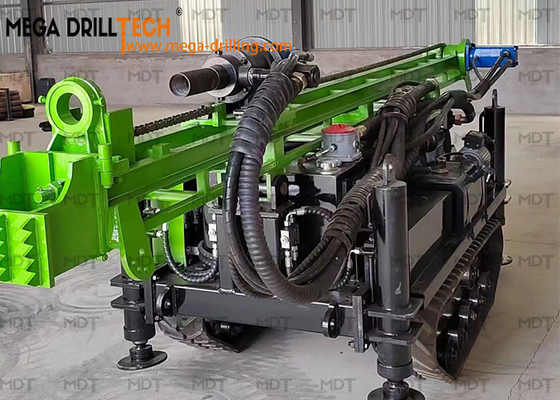

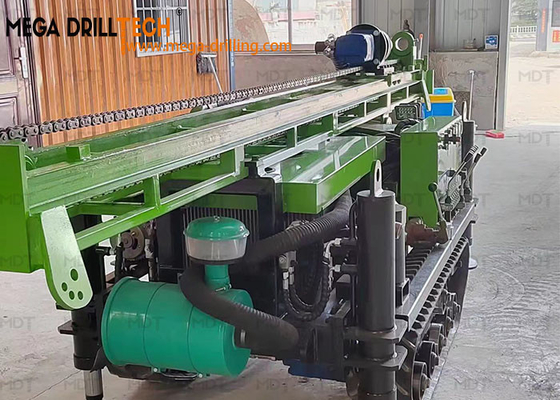

300m Depth Hydraulic Crawler Drilling Rig Horizontal Drilling Machine

Horizontal Drilling Machine ,Water Well Drilling Machine,Blast Hole Drilling Machine

Technical specivication:
1,Engine:Yuchai 38kw-four cylinder(52HP)
2,Drilling hole diameter :90-180mm
3,Drilling depth:90mm:0-300m
4,Feeding stroke:3300mm
5,Working speed:2.5Km/h
6,Climbing capability :0-30Max
7,Rotate speed:0-40rpm
8,Torque:1700N.M
9,Feeding force:50KN
10,Lifting force  :170KN
11,Total legth:4.5m
12,Drilling angle:0°
13:Total weight :1.8T
14:Tower weight :(Can be dismantaled)220KG
15:movement :rubber crawler drive
16:transportation dimension:4.1m*1.2m*1.3m
17,Electric motor:2.2KW(generator)28KW(welding motor)
