Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump

Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump
Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump

Large Image :  Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump

Product Details:
Place of Origin: China
Brand Name: MEGA DRILLTECH
Model Number: MDT-160
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: 3000USD
Packaging Details: wooden case
Delivery Time: 5-8days
Payment Terms: T/T

Horizontal Reciprocating Oil Well Mud Pump Triplex Mud Pump

Description
High Light:

Horizontal Reciprocating oil well mud pump

,

Triplex oil well mud pump

,

Horizontal Reciprocating Mud Pump Triplex

Mud Pump, Drilling Rigs Triplex Mud Pump, 160 Pump,Horizontal Reciprocating Piston Pump

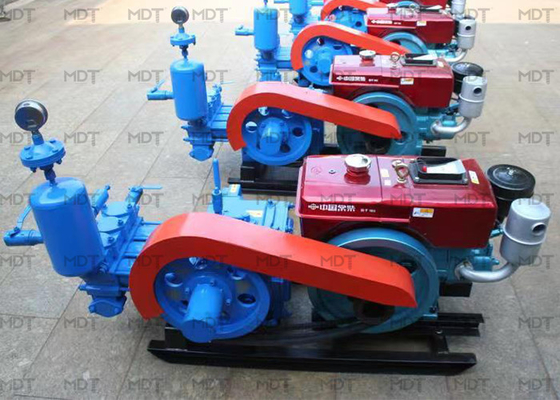

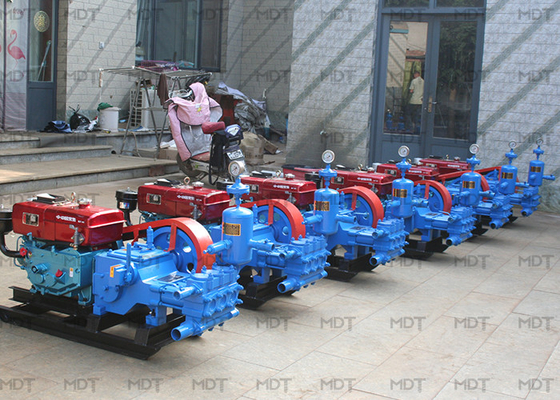

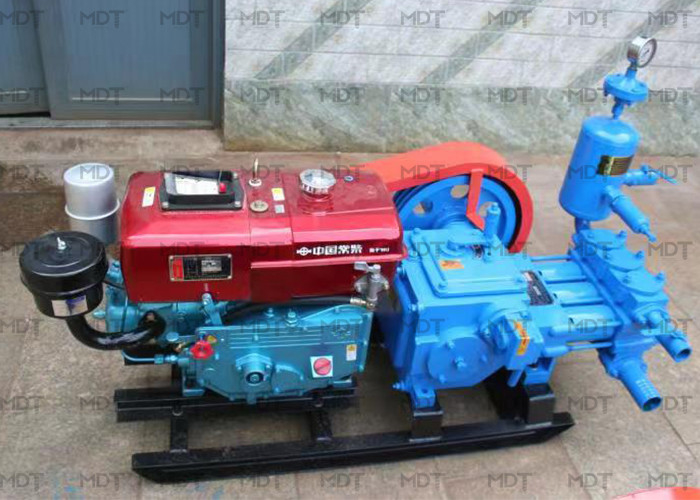

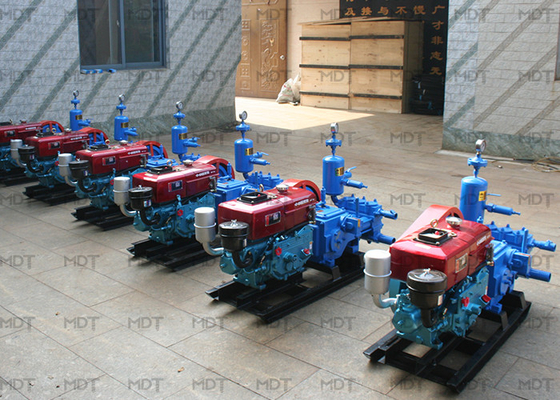

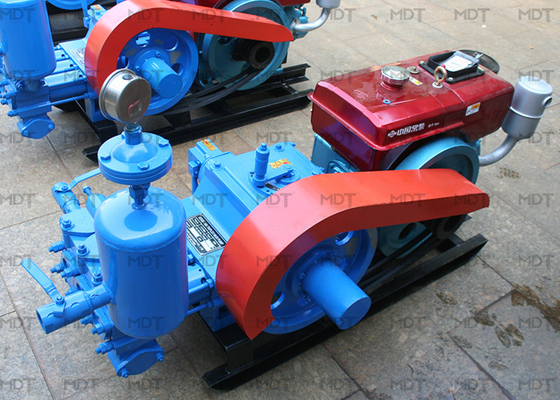

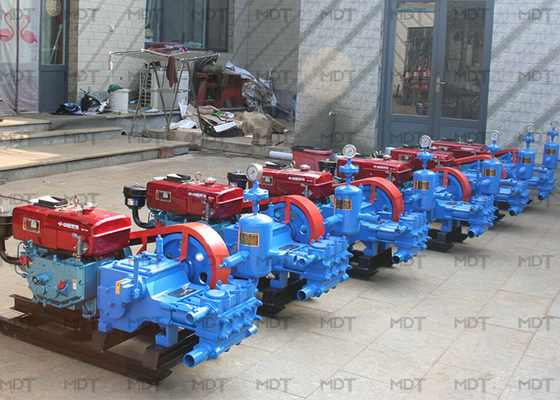

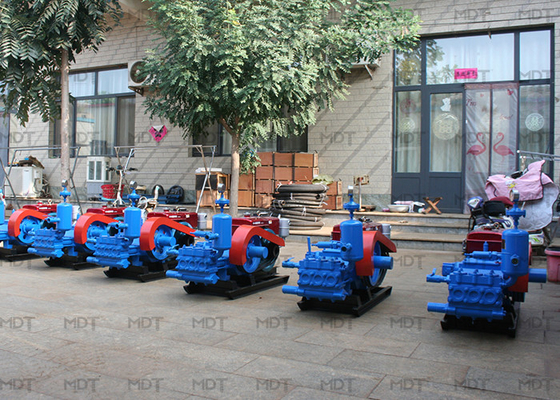

MDT-160 mud pump is a horizontal, three-cylinder single-acting, reciprocal piston pump. It is mainly used to supply flushing fluid to the drilling well in engeering drill's bedrock drilling well in engineering drill's bedrock driling or exploratory drilling. Its shell is A-alloy, so it is lightweight. The pump has two speed and is easily operation



Type
Horizontal Triplex Reciprocating Acting
Pump

Liner Dia

65mm

stroke

70mm

Reciprocate Times(times/minute)

245T/min

190 T/min

Displacement(liter/min)

160L/min

120 L/min

Pressure

1.5Mpa

2.4Mpa

Suction Pipe Dia

51mm

Discharge Pipe Dia

25mm

Power

Diesel Engine

Motor

Type

R185A

Y132S-4-B3

Rated Power

5.88Kw

5.5Kw

Rated speed

2200r/min

1440 r/min

Mass(including the engine)

200kg

Dimensions(L*W*H)

1200*550*580mm
