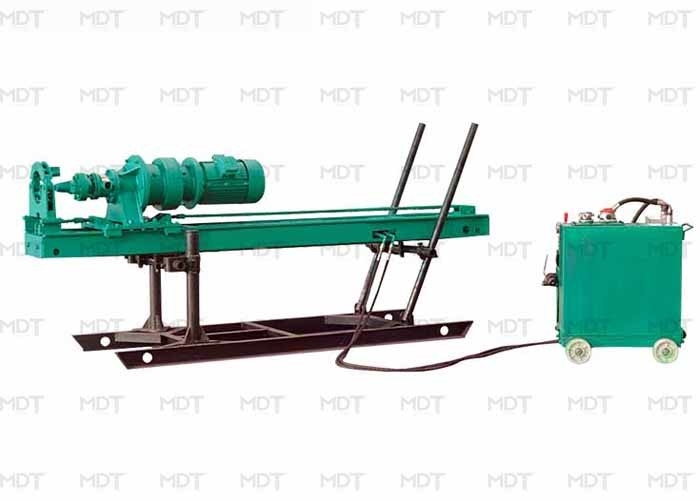

22kw 90 Degree Rotary Piling Machine Slope Protection Portable
Slope Protection Drilling Machine Engineering Anchoring Drilling Rig For Grouting,Anchor Drilling Machine

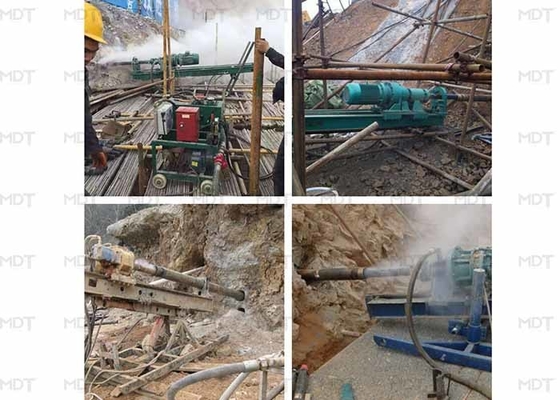

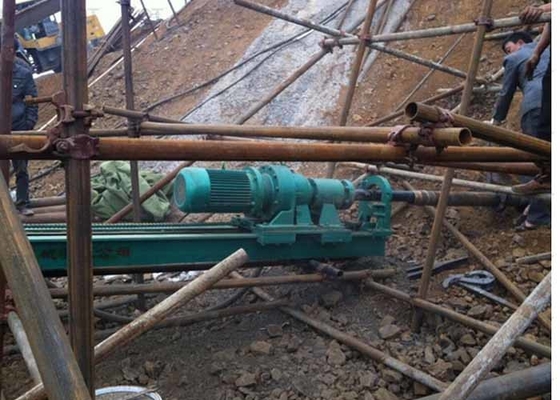

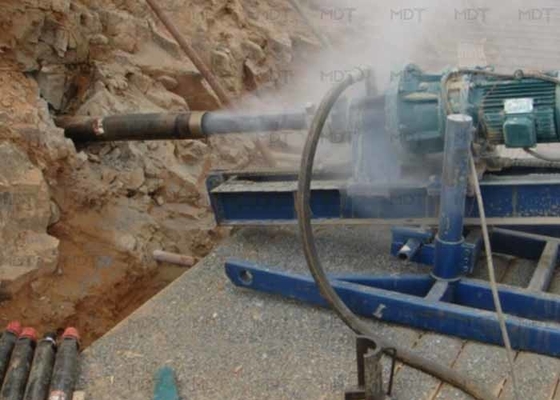

Anchor drilling machine mainly used in geological hazard prevention and control of the landslide and the displacement of anchorage and control structures of dangerous rock mass high slope rock mass of anchorage engineering, such as urban can also be used for deep foundation pit, the foundation reinforcement holes, blasting holes and drain hole drilling. With simple structure, light weight, disintegration of relocation transportation convenience; Adopts full hydraulic pressure control, convenient operation; A second gear rotary speed and torque, can be selected according to actual needs, strong adaptability.
1.Three phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig
2.It adopts hydro-cylinder feeding pattern with compact structure, big lifting force and good stability
3.The radiator can reduce the oil temperature efficiently to avoid hydraulic oil from changing to low viscosity or destroyed because of the very high temperature of oil.
4.The up and down hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles.
Technical parameter
Model | MDT40 | MDTG50 | MDT70 |
Drilling depth | 10-60m | 25-70m | 35-80m |
Drilling diameter | 90-180mm | 90-165mm | 90-200mm |
Hole angle | 0-90° | 0-90° | 0-90° |
Drilling rod diameter | 76 x 1500mm | 76 x 1500mm
89 x 1500mm |
76 x 1500mm
89 x 1500mm |
Output rotay speed | 90rpm | 70rpm | 70rpm |
Rated output torque | 2400N.m | 2500N.m | 3900N.m |
Power head max stroke | 1800mm | 1800mm | 1800mm |
Max lifting force | 25kn | 30kn | 35kn |
Electric power | 4KW | 22kw | 22kw |
Dimension | 2800*800*1400 | 3000*780*1360 | 3100*1000*1500mm |
weight | 1000KG | 1260kg | 1460kg |
