40m Depth High Flexibility Anchor Drilling Rig 380V For Soil Testing

40m Depth High Flexibility Anchor Drilling Rig 380V For Soil Testing

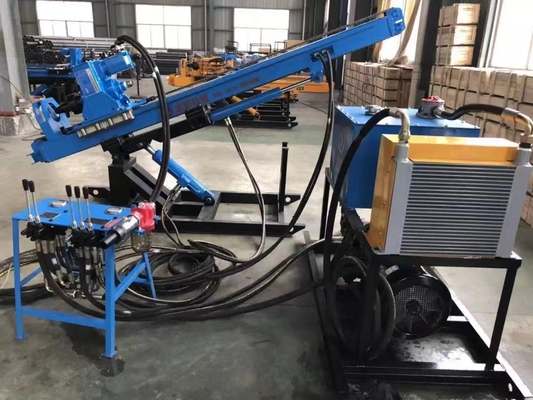

MDT-40 Anchor Drilling Rig

MDT-40 drilling rig is a full hydraulic operated top drive power head drill. It is composed of main set, control panel and pump which are connected together with flexible joint. So it features simple in structure, good disassembility and convenient to mount and transport.
● Operating drill through the centralized control panel ensures assure safety operation and on-site cleanliness.
● Transmission, built in the top drive power head, has two speed range ― high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling.
● Hydraulic part is an international famous brand product which ensures drilling rig's high reliability and permanence stability.

MDT-40 Anchor Drilling rig

Drilling way : DTH down the hole drilling

Drilling depth 40m

Hole diameter 90-200mm

Power type : Electric motor

Voltage:380V

weight :1000kg

Hole angle :0-90

out put roater speed: 70-90rpm

Condition : new

Packing : wooden case
