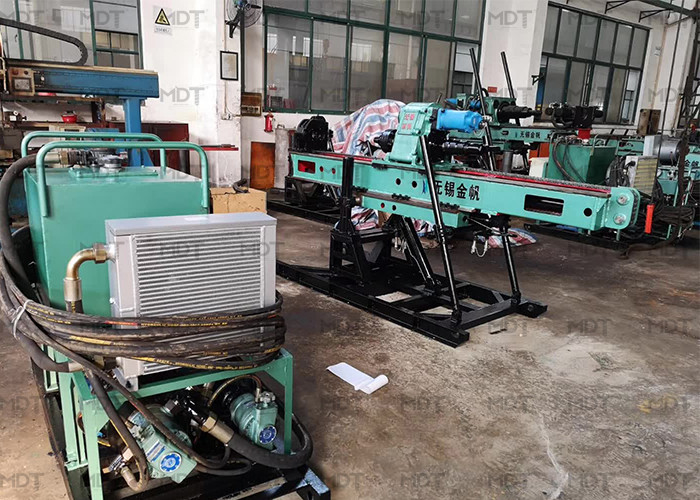

Portable Hydraulic Anchor Drilling Rig Skid Steer Mounted Drill Rig

Portable Hydraulic Anchor Drilling Rig Skid Steer Mounted Drill Rig
Portable Hydraulic Anchor Drilling Rig Skid Steer Mounted Drill Rig

Large Image :  Portable Hydraulic Anchor Drilling Rig Skid Steer Mounted Drill Rig

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT-30

Portable Hydraulic Anchor Drilling Rig Skid Steer Mounted Drill Rig

Description
High Light:

Hydraulic Anchor Drilling Rig

,

Portable Anchor Drilling Rig

,

Hydraulic skid steer mounted drill rig

Portable Hydraulic Anchor Drilling Rig Skid Steer Mounted Drill Rig​



Portable Skid Mounted Hydraulic Anchor Drilling Machine



Summary

MDT-30 construction drilling rig is used for drilling anchor holes in deep base pit of high building,anchor and reinforce side-slope for water conservatory project, water power station project,railways and highways . Especially used for drilling anchor holes in high position side-slope protection and drainage holes.

Features

 MDT-30 drilling rig is a full hydraulic operated top drive power head drill. It is composed of main set, control panel and pump which are connected together with flexible joint. So it features simple in structure, good disassembility and convenient to mount and transport.
Operating drill through the centralized control panel ensures assure safety operation and on-site cleanliness.
Transmission, built in the top drive power head, has two speed range ― high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling.
Hydraulic part is an international famous brand product which ensures drilling rig's high reliability and permanence stability.

Main Technical Specifications



Drilling depth (m) 40-30
Drilling diameter (mm) ¢ 80- ¢ 130
drill diameter (mm) ¢ 50 × 1500 ¢ 73 × 1500
Drilling dip 0-360 °
power head output speed (positive and negative r / min) 24-114
power head output torque (N.m) 1500
Power head stroke (mm) 1800
power head maximum pull force (KN) 30
Power Head biggest feeding force (KN) 15
motor power (kw) 15 Type Y160L-4
Rig Weight (kg) about 550
after assembly Dimensions (mm) 2700 × 1150 × 1400
