Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine

Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine
Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine

Large Image :  Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine

Product Details:
Brand Name: MEGA DRILL TECH
Model Number: MDT485
Payment & Shipping Terms:
Payment Terms: T/T

Bore Dia 300mm Hydraulic Crawler Drilling Rig Micropile Drilling Machine

Description
High Light:

micropile Hydraulic Crawler Drilling Rig

,

300mm Hydraulic Crawler Drilling Rig

,

300mm micropile drilling machine

Water Welll Drilling ,Solar Drilling Rig, Small Borepile Drilling ,Micropile Drilling Machine, Water Welll Drilling

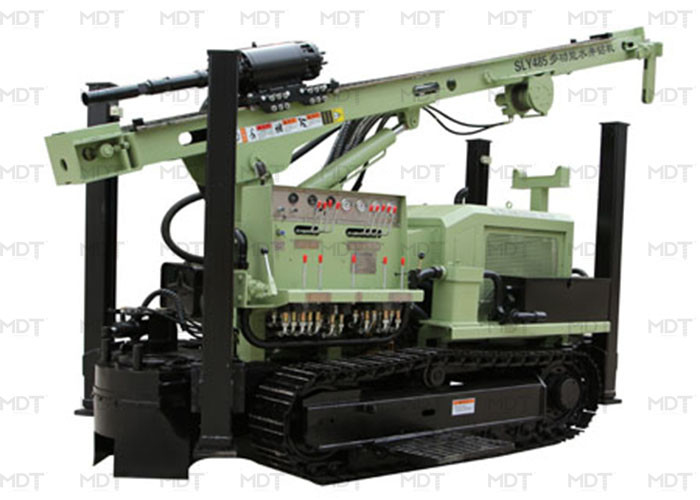

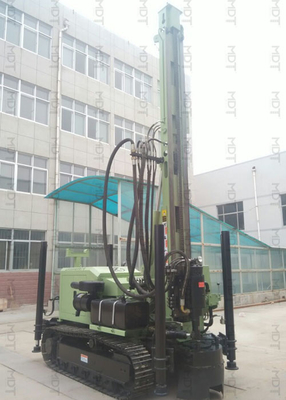

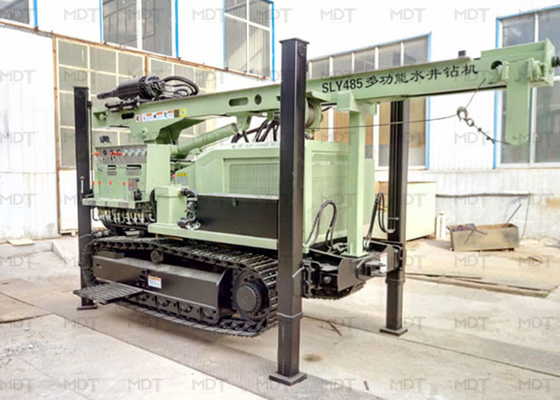

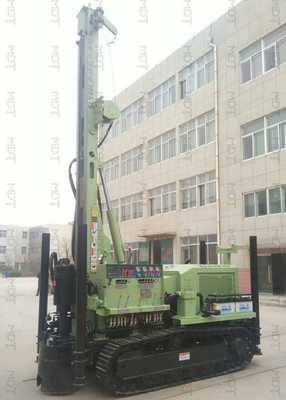

MDT485 multi-function crawler waterwell drilling rig is lightweight, efficient, multi-purpose drilling equipment,which can use air,foam,or mud rotary for percussive drilling according todifferent textures. It is widely used in industrial and agricultural waterconservancy projects, such as drilling wells, testing wells or otherexploration boreholes, in particular, in drilling hole for geothermal heating,it can also meet the engineering basis for reinforcement, loose graveldrilling, rock formation drilling and a variety of engineering requirements.



Technical parameters

Bore diameter(mm) 115-300
Bore depth(m) 200
Walk speed(km/h) 0-2.5
For rock(F) 6-20
Air pressure(Mpa) 1.05-3.0
Air consumption(m³/min) 16-30
Once promotion(mm) 3000
Maximum height from the ground(mm) 320
Rotation Speed(r/min) 0-100
Rotation torque(NM) 3900
Lifting power(T) 8
Climb ability(°) 25
Dimension(L*W*H)(mm) 4900*1600*2400
weight(Kg) 5700
