| Highlight: | 300mm bored pile drilling machine,Crawler bored pile drilling machine,300mm hydraulic coring machine |
||
|---|---|---|---|
Solar Drilling Rig, Small Borepile Drilling ,Micropile Drilling Machine

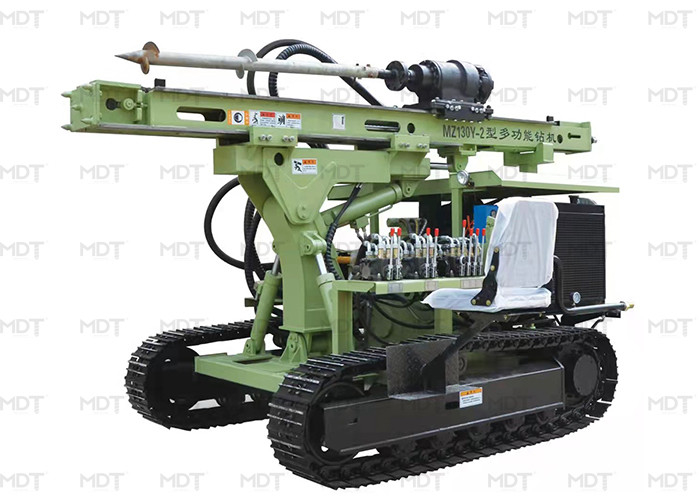

MDT130Y-2 hydraulic crawler drilling rig,use new type of hydraulic technology, low consumption, large rotary torque,convenient hole shifting . The drilling machine structure is compact,.while themast has adjustable compensation function. when drilling, the mast supported onthe ground, borehole stability is good. MZ130Y-2 drilling rig has reliableperformance, high efficiency, suitable for operating conditions. It greatlyreduces cost and improve the efficiency .

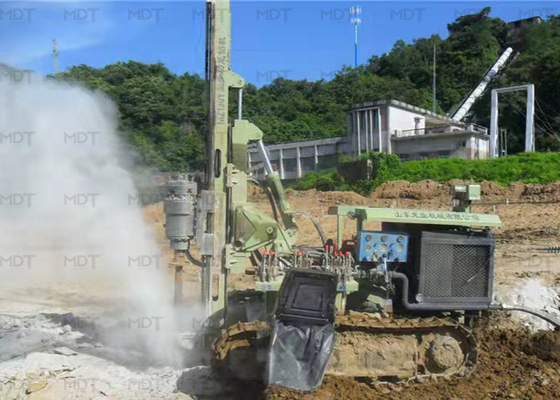

The drilling rig is mainly used for piling, anchor, water Wells, photovoltaicsolar screw pile, DTH blasting construction, etc.
Technical parameters
| Bore diameter(mm) | 90-300 |
| Bore depth(m) | 0-100 |
| Air consumption(m³/min) | 10-26 |
| Air pressure(Mpa) | 0.7-1.6 |
| 1.6-2.46 | |
| Pipe diameter(mm) | 76/89 |
| For rock(F) | 6-20 |
| Bore diameter(screw)(mm) | MAX 400 |
| Bore depth(m) | 0-30 |
| Screw pipe diameter(mm) | 130-400 |
| Once promotion(mm) | 2000 |
| Skid pitch(°) | 100 |
| Swinging angle of skid(°) | 左右共40 |
| Rotation Speed(r/min) | 0-70 |
| Host Power (Kw) | 56 |
| Climb ability(°) | 35 |
| Dimension(L*W*H)(mm) | 4700*1950*2500 |
| weight(Kg) | 4710 |
| Walk speed(km/h) | 0-2.5 |
