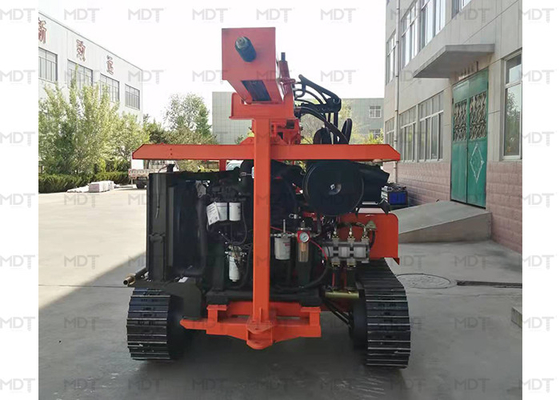

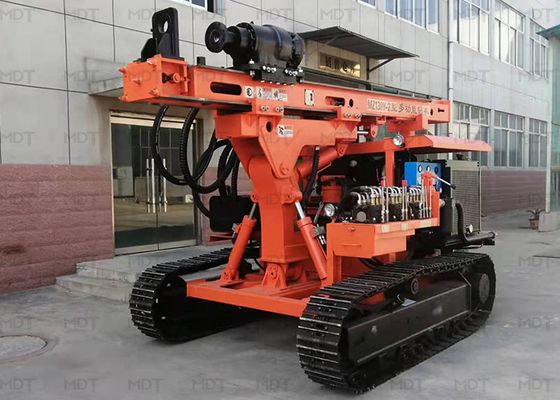

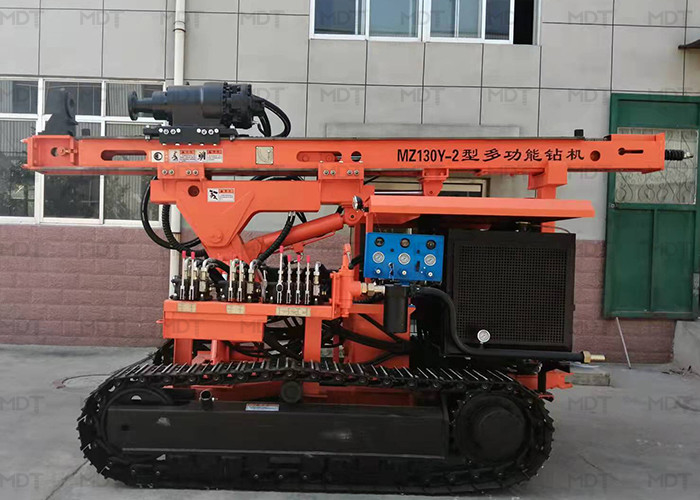

100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering

100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering
100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering 100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering 100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering 100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering

Large Image :  100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering

Product Details:
Brand Name: MEGA DRILL TECH
Model Number: MDT130Y-2

100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering

Description
High Light:

Mechanical Engineering Hydraulic Crawler Drilling Rig

,

100m Hydraulic Crawler Drilling Rig

,

100m drilling machine mechanical engineering

Solar Drilling Rig, small borepile drilling ,micropile drilling machine



MDT130Y-2 hydraulic crawler drilling rig,use new type of hydraulic technology, low consumption, large rotary torque,convenient hole shifting . The drilling machine structure is compact,.while themast has adjustable compensation function. when drilling, the mast supported onthe ground, borehole stability is good. MZ130Y-2 drilling rig has reliableperformance, high efficiency, suitable for operating conditions. It greatlyreduces cost and improve the efficiency .
The drilling rig is mainly used for piling, anchor, water Wells, photovoltaicsolar screw pile, DTH blasting construction, etc.





Technical parameters

Bore diameter(mm) 90-300
Bore depth(m) 0-100
Air consumption(m³/min) 10-26
Air pressure(Mpa) 0.7-1.6(中压)
1.6-2.46(高压)
Pipe diameter(mm) 76/89
For rock(F) 6-20
Bore diameter(screw)(mm) 最大400
Bore depth(m) 0-30
Screw pipe diameter(mm) 130-400
Once promotion(mm) 2000
Skid pitch(°) 100
滑架摆动角度Swinging angle of skid(°) 左右共40
回转速度Rotation Speed(r/min) 0-70
主机功率Host Power (Kw) 56
爬坡角度 Climb ability(°) 35
外形尺寸 Dimension(L*W*H)(mm) 4700*1950*2500
重量weight(Kg) 4710
行走速度Walk speed(km/h) 0-2.5
