MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine

Certification
China HUNAN MEGA DRILLTECH CO., LTD. certification
China HUNAN MEGA DRILLTECH CO., LTD. certification
I'm Online Chat Now

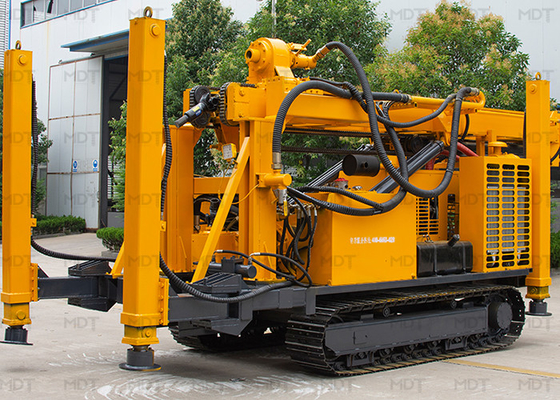

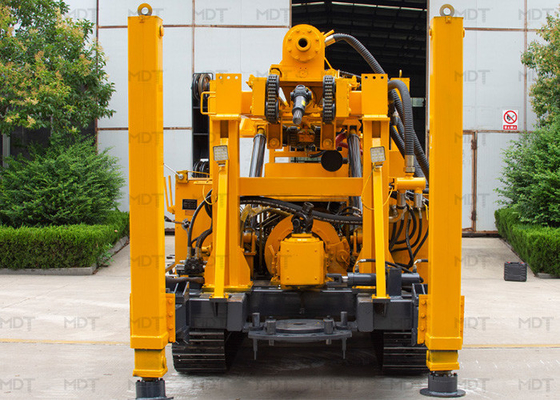

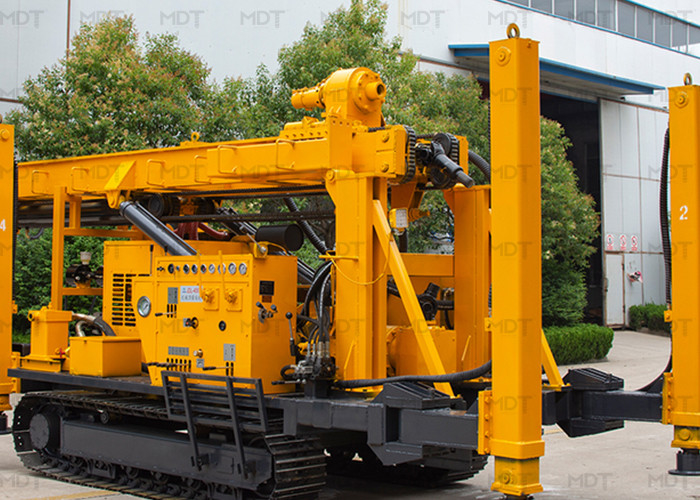

MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine

MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine
MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine

Large Image :  MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine

Product Details:
Place of Origin: China
Brand Name: MEGA DRILLTECH
Model Number: MDT-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: 25000USD
Packaging Details: nude packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 10 units per week

MDT 5 Hydraulic Crawler Drilling Rig 400m Deep Well Drilling Machine

Description
High Light:

MDT 5 Hydraulic Crawler Drilling Rig

,

400m Hydraulic Crawler Drilling Rig

,

400m deep MDT 5

400m Deep Coring Drill Rig Machine, Geotechnical Diamond Core, Hydraulic Rotary Water Drilling Rig Machine For Sale



1. MDT-400 drilling rig is a mechanical top-drive drilling equipment that integrates water drilling and gas drilling, which solves the difficulty of drilling air-drilling hammers in soil layers. The problem of low mud drilling construction efficiency, the dual-purpose water and gas drilling rig is suitable for various formations, and the core drilling efficiency and geological
exploration are efficient and energy saving.


2. MDT-400 features of mechanical top drive water and gas drilling rig
Equipped with hydraulic steel tracks for stronger off-road capability;
Equipped with four hydraulic square tube high outriggers,which is convenient For leveling on site and saves a lot of loading and unloading costs;
The left and right of the rig are equipped with drill rod holders and foot pedals, which are more user-friendly in design;
The front end of the drilling rig is equipped with an auxiliary rod unloading cylinder, which makes it easier to loosen the drill rod;
The hydraulic oil pump is directly connected to the power by a universal shaft, which makes the rig climbing and moving more powerful;
The rig uses dual oil pumps to supply oil, and the hydraulic system uses split flow and merge technology to increase and decrease the power head more quickly;
Equipped with a foldable auxiliary tower, which can lift two 3 m / drill drill rods at a time.


钻进能力

Drilling capacity

水井钻深 Drilling depth for water well 400m(152mm~203mm)
绳索取芯 75mm孔径 Wireline coring N size 800m
开孔钻孔(钻头)直径 Borehole (Drill bit) dia. Ø75~Ø350mm
钻进角度 Drilling angle 90°

动力头参数

Drive head

提升力 Lifting capacity 240kN
推进力 Thrusting capacity 180kN
回转转速 Rotary speed RPM 正转:110,308,518,900r/min
反转:110,308 r/min
最大扭矩 Max. Torque 12000N.m

动力部分

Power Unit

柴油机型号 Engine Model 云内 YN48GBZ
额定功率/转速 Rated power/speed 92kW/ 2400r/min
机械卷扬单绳提升力 Mechanical winch capacity 7.5Ton

配套钻杆

Drill pipe

钻杆直径 Drill pipe dia. Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
钻杆长度 Drill pipe length 3000mm
配套泥浆泵 Mud pump BW160/ BW200/ BW250

配套空压机

Air compressor

耗气总量 Air consumption 16~35m3/min
工作风压 Air pressure 10.5~24.6bar

履带参数

Crawler chassis

行走速度Walking speed 0~2 km/h
爬坡能力 Climbing angle Max. 25°~30°



Dimension

Transport 6300*2000*2650mm
Working 3800*3250*8300mm
Weight with steel crawler 9000kg
