Product Details:
|
| Highlight: | 800 meter small borehole drilling machine,Geotechnical small borehole drilling machine,Geotechnical micropile drilling machine |
||
|---|---|---|---|
Deep Coring Drill Rig Machine, Geotechnical Diamond Core, Hydraulic Rotary Water Drilling Rig Machine For Sale

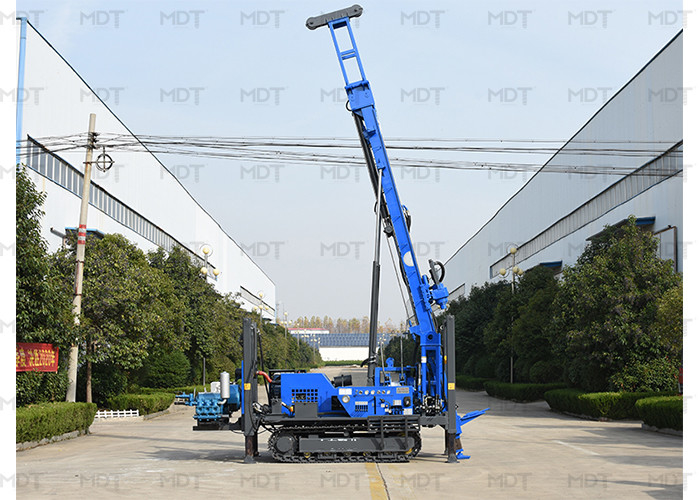

1. MDT-5 drilling rig is a mechanical top-drive drilling equipment that integrates water drilling and gas drilling, which solves the difficulty of drilling air-drilling hammers in soil layers. The problem of low mud drilling construction efficiency, the dual-purpose water and gas drilling rig is suitable for various formations, and the core drilling efficiency and geological
exploration are efficient and energy saving.
|
Drilling capacity |
Drilling depth for water well | 800m(152mm~203mm) |
| 75mm, Wireline coring N size | 1200m | |
| (Drill bit) dia. | Ø75～Ø350mm | |
| Drilling angle | 75-90° | |
|
Drive head |
Lifting capacity | 240kN |
| Thrusting capacity | 180kN | |
| Rotary speed RPM | 正转:43-1080r/min | |
| 反转:47,144 r/min | ||
| Max. Torque | 16500N.m | |
|
Power Unit |
Engine Model | 云内 YN48GBZ |
| Rated power/speed | 92kW/ 2400r/min | |
| Mechanical winch capacity | 7.5Ton | |
|
Drill pipe |
Drill pipe dia. | Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ |
| Drill pipe length | 3000mm | |
| Mud pump | BW160/ BW200/ BW250 | |
|
Air compressor |
Air consumption | 16～35m3/min |
| Air pressure | 10.5～24.6bar | |
|
Crawler chassis |
Walking speed | 0～2 km/h |
| Climbing angle | Max. 25°~30° | |
|
Dimension |
Transport | 6300*2000*2650mm |
| Working | 3800*2500*8500mm | |
| Weight with steel crawler | 11500kg | |
