Product Details:
|
| Type: | Horizontal Double Cylinder Reciprocating Double Acting Piston Pump | Stroke: | 85 |
|---|---|---|---|
| Pump Speed: | 145 | Power: | 80 65 |
| Highlight: | Horizontal Drilling Mud Pump,duplex Drilling Mud Pump,Horizontal duplex mud pump |
||

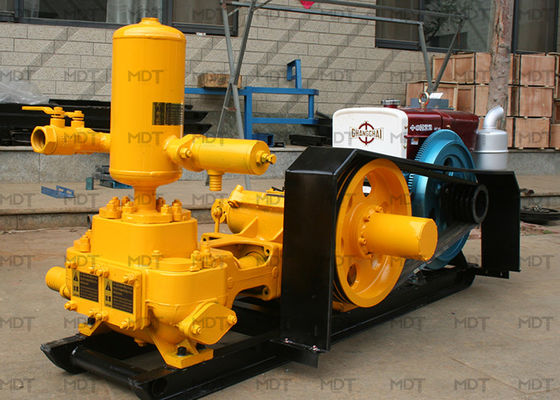

High Performance Duplex Mud Pump, Drilling Mud Pump, Water Well Drilling Pump.
MDT-200 mud pump is a horizontal cylinder double-acting reciprocating piston pump is mainly used for core drilling into the drilling fluid is supplied, comparing the same type of pump and the pump with small size, light weight, more suitable for geological exploration on use.
MDT-200 mud pump is adapted to the needs of diamond drilling is equipped with two kinds of diameter cylinder, cylinder liner for ø80 mm diameter alloy steel particles in normal use 600 m drilling rig, ø65 cylinder liner available the normal use of small caliber diamond drilling rig 1000 meters.
The Technical parameters of the MDT-200 Double-Cylinder Mud Pump:
| Pump type | Horizontal type | |
| Function type | double-function | |
| Cylinder No. | 2 | |
| Cylinder diameter | mm | 80;65 |
| Stroke | mm | 85 |
| Stroke times | Times/min | 145 |
| Displacement | L/min | 200;125 |
| Work pressure | Mpa | 4;6 |
| Transmission shaft | r/min | 530 |
| Belt pulley diameter | mm | 385 |
| Belt type and No. | B type * 5 grooves | |
| powder | 295 diesel or electromotor | |
| Input pipe diameter | mm | 65 |
| Output pipe diameter | mm | 37 |
| Dimensions( L*W*H) | mm | 1050*630*820 |
| Weight | kg | 300 |
