| Cylinder Diameter: | 95 | Stroke: | 110 |
|---|---|---|---|
| Color: | Blue | Flow: | 172----450 |
| Highlight: | Triplex Drilling Mud Pump,95mm Drilling Mud Pump,95mm hydraulic slurry pump |
||

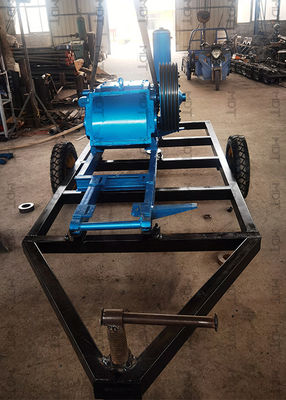

MDT450/5 Mud Pump Slurry Pump For Drilling Rig,Hydraulic Triplex Mud Pump For Oil Drilling Well
Technical specifications of MDT450/5 mud pump
Main uses and features
1. MDT-450 / 5 mud pump is a horizontal three cylinder single acting piston pump, which is mainly used to deliver flushing fluid to the borehole during geological core drilling, as well as soft foundation grouting, mine drainage and liquid transportation;
2. It has four different flows and pressures, with wide flow variation range, which can better meet the needs of different hole diameters, hole depths and drilling processes
Type |
Horizontal three cylinder reciprocating single acting piston pump |
|||
| (mm) Cylinder diameter |
95 | |||
| (mm) Stroke |
110 | |||
Pump speed |
450 | 340 | 240 | 172 |
| (L/min) Flow |
450 | 340 | 240 | 172 |
| (MPa) Pressure |
2.5 | 4 | 6.5 | 10 |
| (Kw) Power |
11 | |||
| (mm) shape size |
1450*745*970 | |||
| (kg) Weight |
430 | |||
