Product Details:
|
| High Light: | Single Piston mud pump oil rig,85mm mud pump oil rig,85mm slurry vacuum pump |
||
|---|---|---|---|

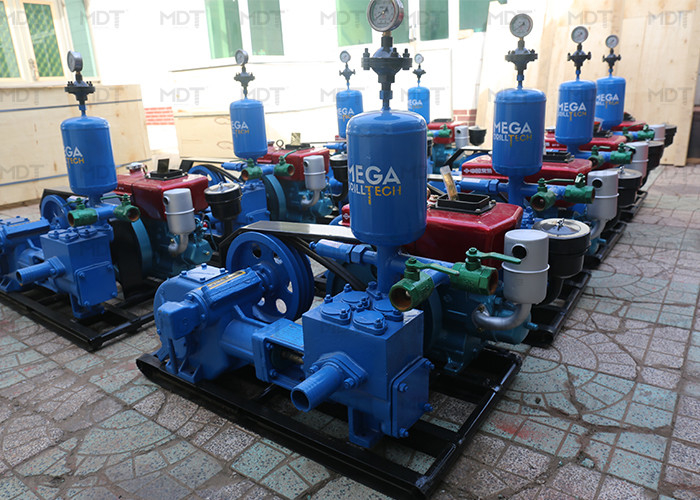

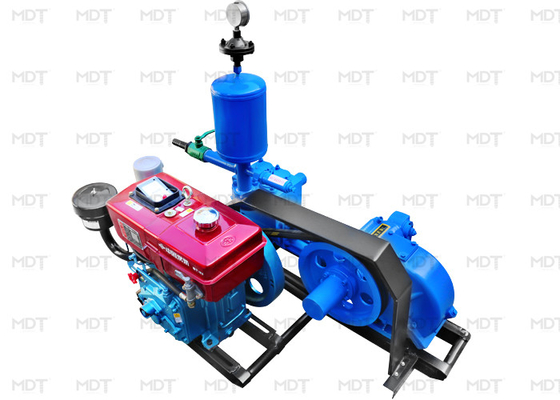

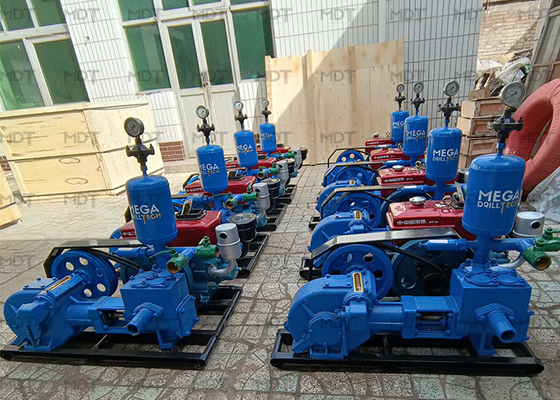

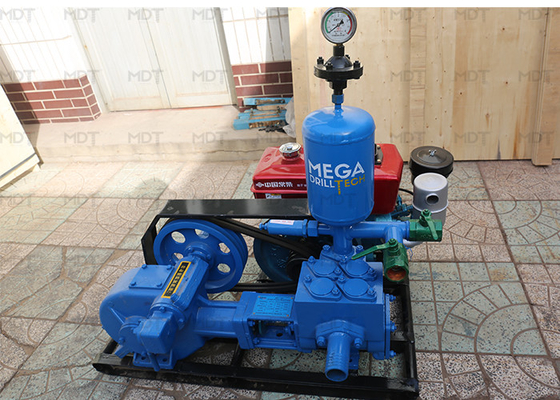

Single Piston Mud Pump For Soil Investigation
The mud-pump is one of the principal equipments for geological prospecting. While core drilling, the pump supplies the drilling hole with enough volume slurry or cleaning water and makes it circulate in the drilling hole in order to carry the rock debris up to the ground, to make the bottom of the drilling hole clean, to cool and lubricate the drilling tools, to protect the wall of the drilling hole and to help drilling faster. So the performance of mud-pump affects the efficiency of drilling and safety in production directly.
MDT-160 mud pump is a horizontal double-acting reciprocation single-cylinder piston pump,It is mainly used in seismic shot hole drilling well drilling and bedrock drilling with engineering drilling rig.
| Model No.: | BW-160 |
| Type | Horizontal single cylinder double action reciprocating piston pump |
| Cylinder diameter | 95mm |
| Piston Stroke | 85mm |
| frequency of stroke | 165 times/min |
| Flow rate | 160 L/min |
| Pressure | 1.3 mpa |
| Power input | 5.88 kW |
| Diameter of suction pipe | 50mm |
| Diameter of discharge pipe | 40mm |
| Overall dimensions (LxWxH) | 1110 x 725 x 965 mm |
| Weight | 200 kg |
