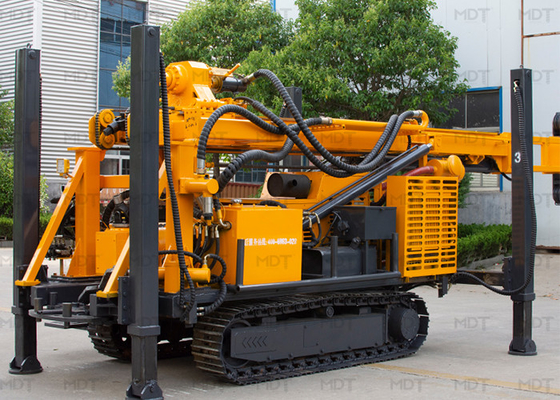

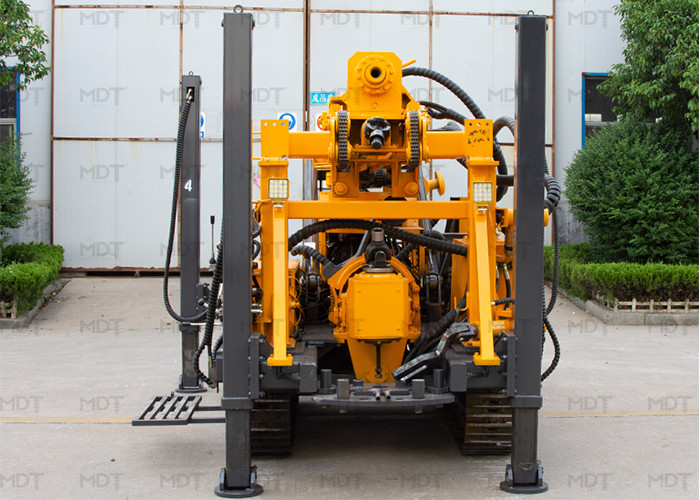

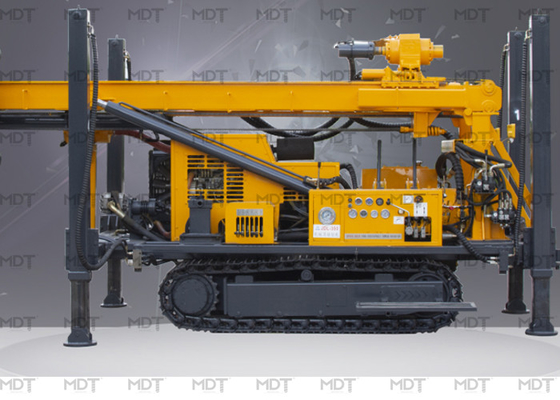

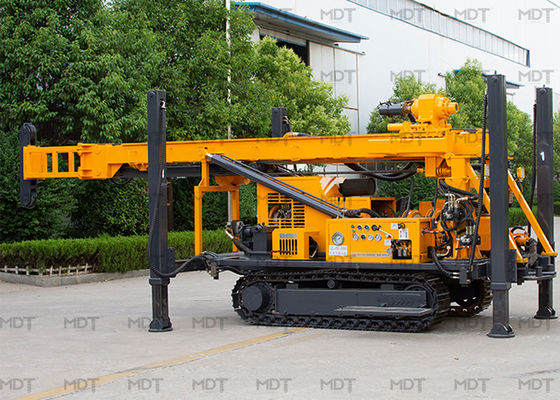

Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use

Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use
Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use

Large Image :  Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use

Product Details:
Place of Origin: China
Brand Name: MEGA DRILLTECH
Model Number: MDT-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: 25000USD
Packaging Details: nude packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 10 units per week

Mechanical Hydraulic Water Well Drilling Machine Geological Exploration Use

Description
Highlight:

Hydraulic water well drilling machine

,

Mechanical water well drilling machine

,

Hydraulic mechanical drilling machine

Coring Drill Rig Machine, MDT-350 Mechanical Hydraulic Mine Drilling Rig Coring Drill Rig Machine



1. MDT-350 drilling rig is a mechanical top-drive drilling equipment that integrates water drilling and gas drilling, which solves the difficulty of drilling air-drilling hammers in soil layers. The problem of low mud drilling construction efficiency, the dual-purpose water and gas drilling rig is suitable for various formations, and the core drilling efficiency and geological exploration are efficient and energy saving.


2. MDT-350 features of mechanical top drive water and gas drilling rig
Equipped with hydraulic steel tracks for stronger off-road capability;
Equipped with four hydraulic square tube high outriggers,which is convenient For leveling on site and saves a lot of loading and unloading costs;
The left and right of the rig are equipped with drill rod holders and foot pedals, which are more user-friendly in design;
The front end of the drilling rig is equipped with an auxiliary rod unloading cylinder, which makes it easier to loosen the drill rod;
The hydraulic oil pump is directly connected to the power by a universal shaft, which makes the rig climbing and moving more powerful;
The rig uses dual oil pumps to supply oil, and the hydraulic system uses split flow and merge technology to increase and decrease the power head more quickly;
Equipped with a foldable auxiliary tower, which can lift two 3 m / drill drill rods at a time.

Specification
MDT-350


Drilling capacity
Drilling depth for water well
350m(152mm~203mm)
Wireline coring NQ size
600m
Borehole (Drill bit) dia.
Ø75~Ø350mm
Drilling angle
90°




Drive head
Lifting capacity
120KN
Thrusting capacity
85KN

Rotary speed RPM
Forward:27,51,93,129,156,193,247,437,737,901r/min
Reverse:48/219 r/min
Max. Torque
10500N.m
Power
Rated power/speed
58kW/ 2400r/min
Mechanical winch capacity
5.5 Ton

Drill pipe
Drill pipe dia.
Ø50/ Ø60 / Ø76/ Ø89mm
NQ/ HQ /PQ
Drill pipe length
3000mm
Mud pump
BW160/ BW200/ BW250

Air compressor
Air consumption
16~35m³/min
Air pressure
10.5~24.6bar
Crawler
Walking speed
0~2 km/h
Crawler chassis
Climbing angle
Max. 25°~30°

Dimension
Transport
6300*2000*2600mm
Working
3800*2400*7600mm
Weight
6500kg
MOQ
1set
Price(usd)
25000
