1000 Meter Tunnel Drilling Machine Underground Diamond Drill Rig Hydraulic
Tunnel Drilling Machine, UX1000 Underground Drill Rig
| Drill depth(BQ/NQ/ HQ) | 1000m / 760m / 520m |
| Rod size | A-H |
| Torque | Max 2000Nm |
| Spindle speed | Max 1400rpm |
| Feed & pull force | 89KN |
| Feed travel | 1.8m |
| Max rod size | 89mm |
| Bore(without jaws) | 102mm |
| Bore(without covers) | 170mm |
| Axial holding force | 45kN |
| Axial holding force (TC) | 90kN |
| Wireline capacity | 1000m x 4.75mm |
| Line pull | Bare drum 3.6kN, Full drum9.7kN |
| Line speed | Bare drum 1.8m/s, Full drum4.8m/s |

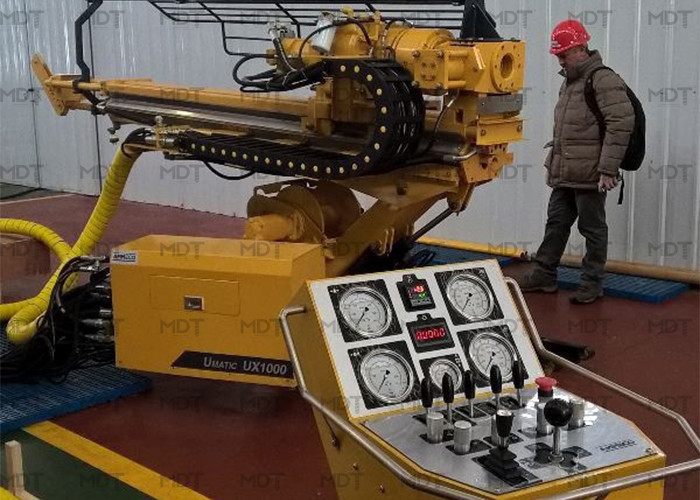

The UX1000 is an underground type of coring drill rig for drilling medium to deep holes, and the control panel is pilot-hydraulic-control design, Operation is flexible and comfortable, high production efficiency As modified UX800 , UX1000 grasps the international most advanced design idea and process standards, a number of technical indicators reached the industry leading. The rotation unit is compact and modular design ,it has enough torque reserve and wide RPM range. The integrated gearbox is two-speed and fully variable-control .It can effectively deal with the challenge of complex formation drilling technology. The rod holder, which is fully synchronized with the chuck, is operated by a hydraulic cylinder (opening) and a long life Nitrogen spring (closing) ensuring high clamping force and quick closing action as well as improved control and decreased service needs. The UX1000 rig has a drill capacity of NQ 800 m(BQ 1000m), and this flexible drilling rig can handle up to 3 m and 1.5 m core barrels.
- The drill is compact and modular design

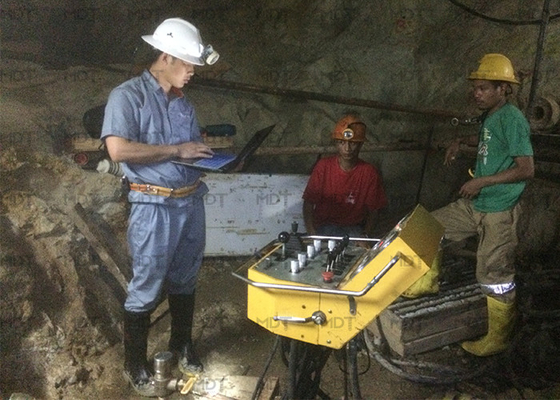

- The control panel is pilot-hydraulic-control design equipped with user-friendly interface and monitoring gauges.

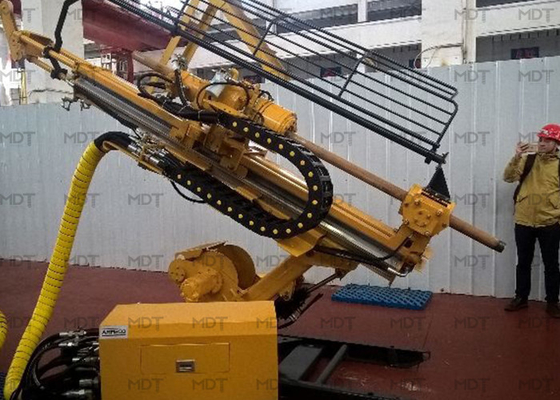

- With the use of a hydraulic-operated positioner and a fast calibrating turntable, the drill is easy for set up and capable of drilling holes in all angles.
- The rod holder, which is fully synchronized with the chuck, is operated by a hydraulic cylinder (opening) and a long life Nitrogen spring (closing)
