350 Meter Core Drilling Rig Portable For Geotechnical Investigation

350 Meter Core Drilling Rig Portable For Geotechnical Investigation
350 Meter Core Drilling Rig Portable For Geotechnical Investigation 350 Meter Core Drilling Rig Portable For Geotechnical Investigation 350 Meter Core Drilling Rig Portable For Geotechnical Investigation 350 Meter Core Drilling Rig Portable For Geotechnical Investigation 350 Meter Core Drilling Rig Portable For Geotechnical Investigation 350 Meter Core Drilling Rig Portable For Geotechnical Investigation

Large Image :  350 Meter Core Drilling Rig Portable For Geotechnical Investigation

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT600
Payment & Shipping Terms:
Payment Terms: T/T, T/T

350 Meter Core Drilling Rig Portable For Geotechnical Investigation

Description
High Light:

core Drilling Rig Portable

,

350 meter Core Drilling Rig

,

350 meter core drilling equipment

350 Meter Core Drilling Rig Portable For Geotechnical Investigation



Fully Hydraulic Drilling Machine,F600/F600D Portable Drill Rig,



-Industry model,600 drill rigs application cases in the world

- Authoritative technical, a lot application experience of many well-known drilling companies

-move easily, it is the ideal choice of the exploration equipment for the road-limited area and unmanned mountain.



BTW /NTW/ HTW 600m / 400m / 350m
Weight 318KG(Heaviest unit 160KG)
L x W x H 2743 x 502 x 5283 mm(working status)
Line pull 55KN
Rod size 54mm-114mm
Power unit Kobuta 1105T , 3x32HP
Power unit weight 160 KG /unit
Control panel 82 KG
Instrument hydraulic system, drilling operation
Operation control feeding, drilling, clamping, rope, rinse
Hydraulic tank capacity 45 L , Water cooling
Hydraulic tank weight 144KG(Empty),181KG(Full)
Wireline weight 61KG(Empty),98 KG(Loaded)
Mud pump Triplex Plunger, 69 bar,79 lpm

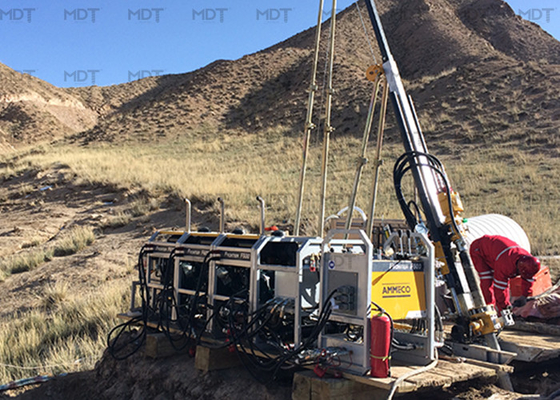

Frontier F600/F600D is one of Frontier series man-portable drilling rigs and suitable for general geological engineering exploration drilling and core drilling in the road-limited area and unmanned mountain.



Ammeco-Frontier series drilling rigs have followed the industry standards of Canadian Diamond Drilling Association (CDDA) and are assembled by imported key components, in the form of SKD in China. The drill’s compact structures make sure that it can be dismantled easily in the field, so F600/F600D is the ideal choice of the exploration equipment for the road-limited area and unmanned mountain. With AMMECO TW series of thin-wall drill rods, the F600/F600D drill can give full performance to the advantages offering increased drilling efficiency, larger core diameters, and higher recovery rate.





The drill’s compact structures make sure that it can be assembled within the 3m x 3m (4mx4m )platform



With optimized designing, the Frontier series drilling rigs can be disassembled in 45mins and re-positioned in a half shift.



The Frontier series drilling rigs adopts energy-saving and noise-reduction techniques. Because of the low-noise operation, it not only allows the operator to feel comfortable, but also can reduce the interference on the surrounding environment.



F600/F600D drilling rig can be easily handled by manpower and no roads will be needed, so the influence on the natural environment is very small. Meanwhile, footprints traces are limited, and the restoration of the environment can be very simple.



The Frontier series drilling rigs’ hydraulic system is simple and reliable, the general crew can be competent for equipment maintenance.
