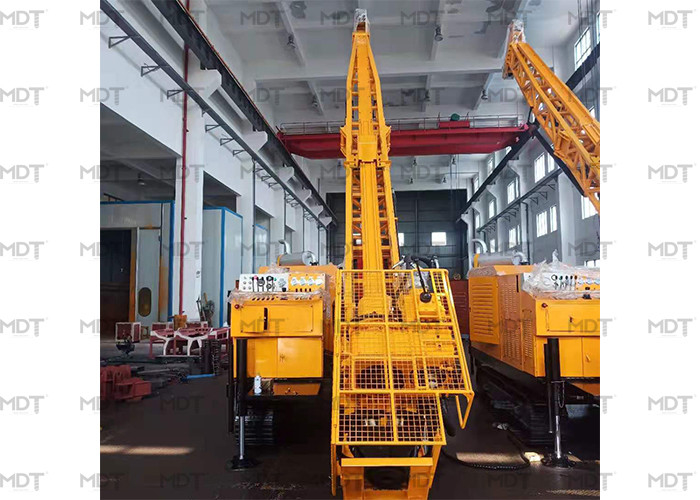

600m Depth Diamond Core Drilling Rig Simple Structure High Speed

600m Depth Diamond Core Drilling Rig Simple Structure High Speed
600m Depth Diamond Core Drilling Rig Simple Structure High Speed
600m Depth Diamond Core Drilling Rig Simple Structure High Speed 600m Depth Diamond Core Drilling Rig Simple Structure High Speed 600m Depth Diamond Core Drilling Rig Simple Structure High Speed

Large Image :  600m Depth Diamond Core Drilling Rig Simple Structure High Speed

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT-1200
Payment & Shipping Terms:
Payment Terms: T/T

600m Depth Diamond Core Drilling Rig Simple Structure High Speed

Description
High Light:

diamond Core Drilling Rig

,

600m Core Drilling Rig

,

600m diamond drilling equipment

600m Depth Diamond Core Drilling Rig Simple Structure High Speed​



MDT-1200 Hydraulic Surface Exploration Core Drilling Rig, Wheel Type Mining Exploration Drilling Machine



MDT-1200LG surface core drilling rig is one kind of hydraulic top drive rotary head type drilling rig which is mainly used in diameter diamond drilling of metal and nonmetal solid deposit exploration. It can be used in carbide bit core drilling. It is used to bore vertical holes as well as inclined holes, which is also applied in engineering boreholes of hydrology water wells, petroleum or gas field exploration, dike & dam cement grouting, tunnel ventilation and water draining, etc.

features

The rig takes advantage in its high rotary speed, reasonable rotary speed range, various rotary speed grades and big torque in low speed. Hence, it’s very suitable for small diameter diamond bit core drilling. Meanwhile, it can meet the requirements of large diameter carbide bit core drilling and varieties of engineering boreholes.
It has long stroke which is helpful to reduce the rod reversion frequency, avoid coring block, and improve productivity.
It has a simple structure, a light weight and is convenient to remove, so as to make the replacement process easily.
Its operation is concentrated, simple, convenient, flexible and reliable, so as to reduce the labor intensity a lot.
It needn’t be provided with a special inclined tower when drilling inclined holes. It can also realize raising two rods at one time.
It is convenient and fast to mount and install the rig. No specialized drill tower is needed to allocate which has cut the preparation time largely.
It has several choices of the chassis, such as skid / trailer / crawler mounted(as the customers’ requests)


technical specification



Borehole diameter/depth BQ 1200 m / NQ 850 m / HQ 600 m
Drill angle 0~-90°
Drill head rotary speed / torque 100-140RPM ;210-300 RPM;437-636 RPM ;750-1100RPM
/Max torque:5200Nm
Drill head feeding stroke 3500 mm
Drill head Max. Lifting capacity 55 kN
Drill head Max. Thrust force 108kN
Main hoist Max. Lifting capacity 71 KN
Lifting speed 40m/min
Assist hoist Max. Lifting capacity 12 KN
Lifting speed 120m/min
Diesel engine model Cummins 6BTA5.9-C190
Diesel engine power 140kw
Drill rig weight(crawler mounted) about 11500kg
