380V Yellow Universal Concrete Mixer Machine ISO9001 Standard

380V Yellow Universal Concrete Mixer Machine ISO9001 Standard
380V Yellow Universal Concrete Mixer Machine ISO9001 Standard 380V Yellow Universal Concrete Mixer Machine ISO9001 Standard

Large Image :  380V Yellow Universal Concrete Mixer Machine ISO9001 Standard

Product Details:
Place of Origin: CHINA
Brand Name: MEGA DRILLTECH
Certification: ISO9001
Model Number: MDT-15
Payment & Shipping Terms:
Payment Terms: T/T, T/T, T/T, T/T, T/T

380V Yellow Universal Concrete Mixer Machine ISO9001 Standard

Description
High Light:

380V universal concrete mixer machine

,

ISO9001 universal concrete mixer machine

,

380V transit mixture machine

High-Quality Concrete Pump Elbow ,Mini Portable Self Loading Diesel Concrete Mixer,MDT-15 Concrete Pump Hose

Concrete output: 6-8m³/h



Product Description:

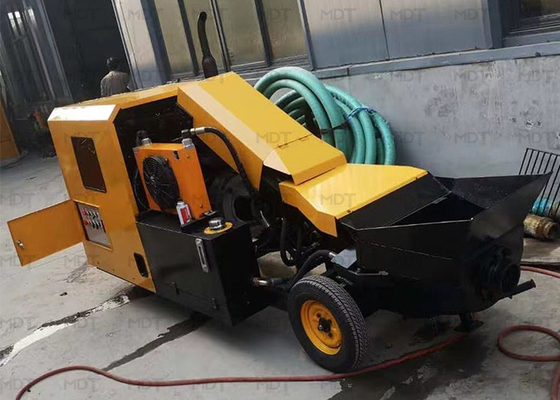

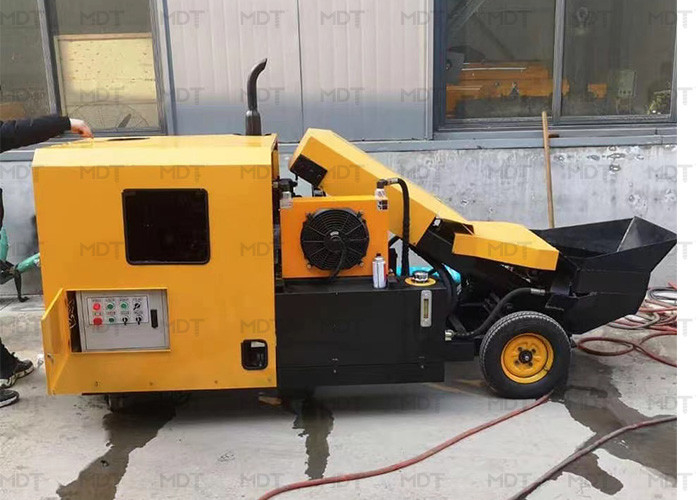

Trailer Concrete Pump Pump Description:



A concrete pump is a machine used to transport liquid concrete. Now, concrete pumps have gradually replaced other methods of conveying liquid concrete.

Stationary concrete pumps are generally installed on the ground. Under the action of high pressure, concrete is transported to high places through pipelines. The stationary concrete pumping machine is one of the most practical concrete conveying equipment and is favored by most customers.



Concrete Pump Advantages:



Reliable equipment quality small secondary construction column pumps mostly use dual-pump, dual-circuit open hydraulic systems. The small concrete pump truck system is simple, the components have a long service life and high reliability. A fully enclosed structural electrical control box, protection control device can work under harsh conditions. The Plc dual system control design simplifies the circuit while significantly improving its reliability and lifetime. Make the equipment work continuously.

There are many advantages in pumping concrete over this bucket and crane system. As well as being able to pump concrete much faster than buckets could lift it.

Our stationary concrete pumps provide an economical solution for your long-distance transportation. They can provide high reliability and safety even under bad working conditions.



Concrete Pump specifications:



Model MDT-15
power supply 380V
Power 15KW
Output 6-8m³/h
Greatest pressure/ Work pressure 10Mpa&8Mpa
Vertical conveying distance 60M
Horizontal conveying distance 30M
The max diameter of aggregate ≤2cm
Duct diameter 80mm
weight 750Kg
Dimensions 1800*680*1250mm
