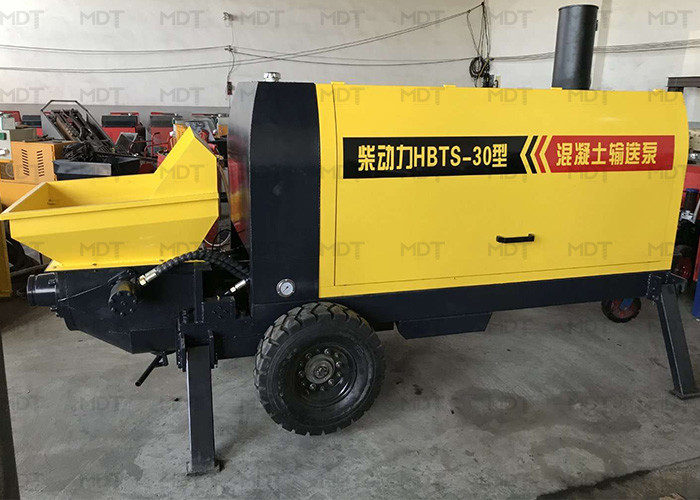

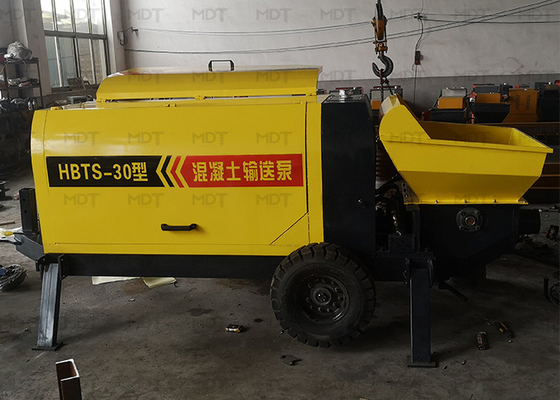

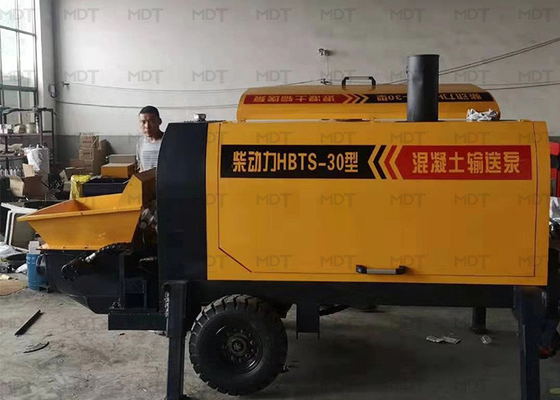

MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump

MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump
MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump

Large Image :  MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump

Product Details:
Place of Origin: CHINA
Brand Name: MEGA DRILLTECH
Certification: ISO9001
Model Number: MDT-30
Payment & Shipping Terms:
Payment Terms: T/T, T/T, T/T, T/T
Contact Now

MDT-30 Small Shotcrete Machine Trailer Mounted Concrete Pump

Description
Highlight:

trailer mounted small shotcrete machine

,

MDT-30 small shotcrete machine

,

MDT-30 trailer mounted concrete pump

Trailer Concrete Pump MDT-30, Construction Equipment Small Concrete Pump Portable Pumpcrete For Sale

Electric motor or Diesel motor 2 options.
Concrete output: 15-20 m³/h



Product Description

The MDT-30 concrete pumps as supplied by Qijiu come in an array of outputs ranging from 15 cubic meters to 20 cubic meters per hour over distances of 260-350m. Our trailer-mounted concrete pumps offer the ideal solution for placing concrete in hard–to-access areas because of their compact size, they can also be used as an alternative to truck-mounted concrete pumps on larger pours that require a slower output rate.





Model MDT-30
Concrete output/m³ 15-20
Concrete Pressure/Mpa 12
Hydraulic Pump Output/cc 80
Horizontal Pumping Distance/m 260-350
Vertical Pumping Distance/m 100-120
Power 37Kw motor or 44Kw Diesel Engine
Concrete Cylinders/mm 140*750
Maxinmun Aggregate/mm 30
Hydraulic Oil Capacity/L 150L
Outlet Size/mm 100(80)
Dimensions/mm 4000*1200*1400
Weight/Kg 1800







Tag:

55KW trailer mounted concrete pump,

trailer mounted small shotcrete machine,

MDT-30 small shotcrete machine
