Product Details:
|
| High Light: | 55KW portable concrete mixer machine,MDT-50 portable concrete mixer machine,55KW trailer mounted concrete pump |
||
|---|---|---|---|

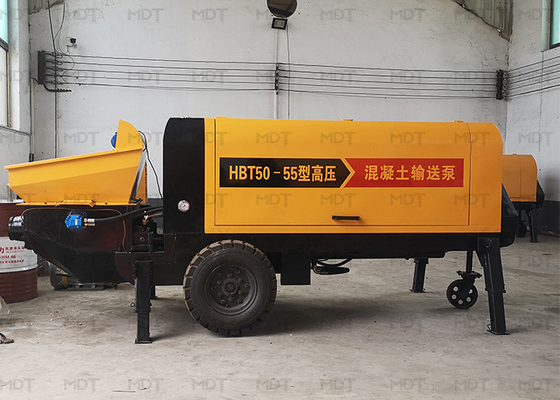

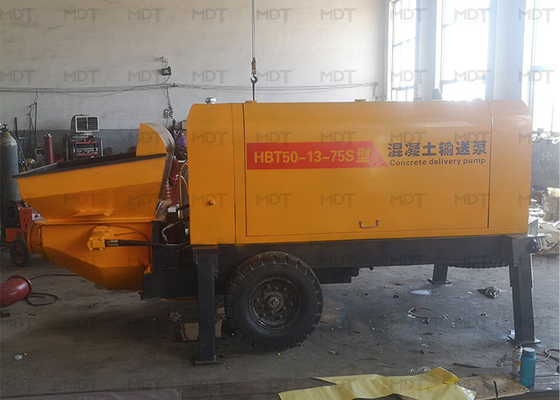

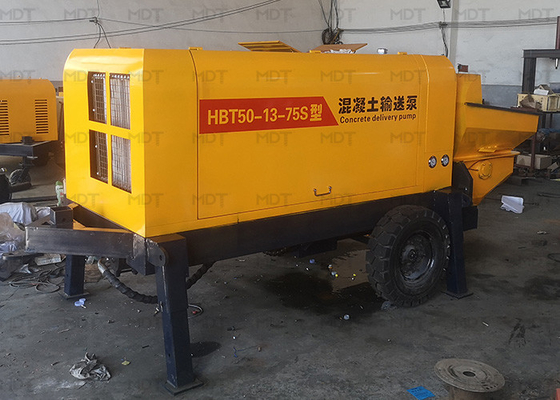

The MDT-50 concrete pumps as supplied by Qijiu come in an array of outputs ranging from 30 cubic meters to 50 cubic meters per hour over distances of 300m. Our trailer-mounted concrete pumps offer the ideal solution for placing concrete in hard–to-access areas because of their compact size, they can also be used as an alternative to truck-mounted concrete pumps on larger pours that require a slower output rate.
| Model | MDT-50 |
| Concrete output/ m3/hr |
30-60 |
| Concrete Pressure/ Mpa |
14 |
| Hydtaulic Pump Output/cc |
140 |
| Horizontal Pumping Distance/m |
200-300 |
| Vertical Pumping Distance/m |
60-100 |
| Power | 55Kw motor or 84Kw Diesel Engine |
| Concrete Cylinders/mm |
200*1000 |
| Maxinmun Aggregate/mm |
40 |
| Hydraulic Oil Capacity/L |
240L |
| Outlet Size/mm | 125(100) |
| Dimensions/mm | 4000*1500*1550 |
| Weight/Kg | 2600 |
