Product Details:
|
| Feeding Speed: | 0-25m/min | Drilling Diameter: | 200-400mm |
|---|---|---|---|
| Drilling Depth: | 200m | Max. Pull Down Force: | 200kN |
| Hoisting Speed: | 0-100m/min | Dimension: | 11.5m*2.5m*3.2m |
| Rotary Speed: | 0-120r/min | Control System: | PLC |
| High Light: | 200kN Vertical Drilling Rig,25t Vertical Drilling Rig,100m/Min Hoisting Drilling Rig |
||
This tool is characterized by several advantageous features. It has reasonable technical parameters and a higher mechanization degree, resulting in lower labor strength. It also has a convenient operation with higher drilling efficiency, achieved through its hydraulic feeding mechanism. The rotary table can be detached from the wellhead with the front frame, creating a wide operation area, enabling use of different drilling ways. Its advantages are further emphasized by its compact structure, smaller volume, and light weight, as well as its stronger disassemblability, making removal, assembly, and repair easier. Furthermore, a transfer mechanism is equipped in the transmission case which helps perform quick hole-cleaning.
| Attribute | Value |
|---|---|
| Product Name | Heavy Duty Boring Machine, Vertical Drilling Rig, Spindle Bore Driller |
| Max. Torque | 25kN·m |
| Power | 110kW |
| Drilling Depth | 200m |
| Dimension | 11.5m*2.5m*3.2m |
| Max. Pull Down Force | 200kN |
| Drilling Diameter | 200-400mm |
| Feeding Speed | 0-25m/min |
| Drilling Angle | 90° |
| Hoisting Speed | 0-100m/min |
| Material | Q345B |

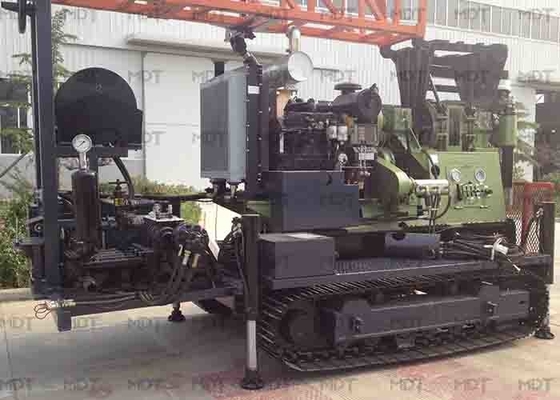

MEGA Drilltech's Spindle Bore Driller is a heavy duty boring machine, manufactured in China. It is an ideal choice for drilling operations with a minimum order quantity of 1 unit, and a negotiable price. The machine comes with a dimension of 1510×600×1055 mm and a delivery time of 15-20 days, with payment terms of T/T. It has a maximum lifting force of 100kN, drilling diameter ranging from 200-400mm, and a hoisting speed of 0-100m/min. The drilling depth can reach up to 200m, and it requires 110kW of power.
The Spindle Drilling Rig is securely packaged in a cardboard box, and shipped in accordance with the local regulations and laws. All packages are shipped via our preferred shipping partner, and we use a reliable tracking system to ensure that the package reaches the customer securely.
We provide a warranty for all of our products, and, in the event of any issues, we will work with our shipping partner to ensure any returns or replacements are processed quickly and safely.
