Product Details:
|
| High Light: | 200m rock drilling equipment,ISO9001 rock drilling equipment,200m anchor drilling machine |
||
|---|---|---|---|

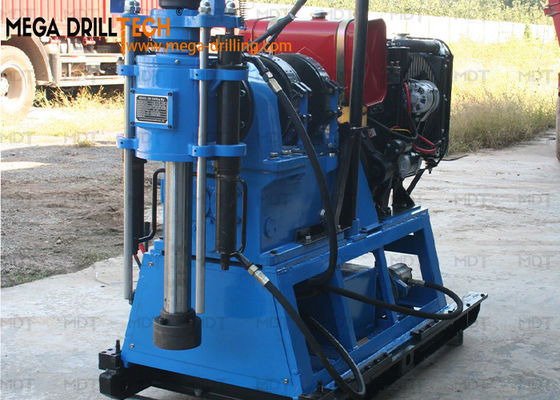

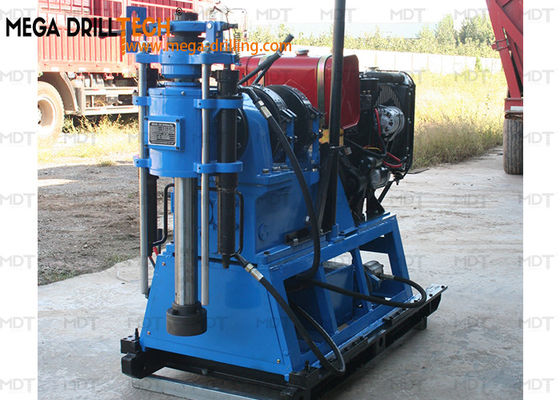

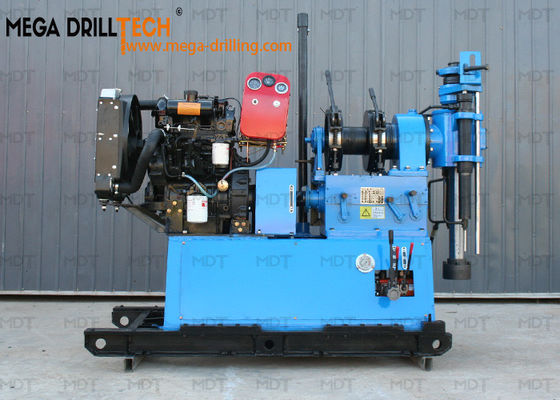

200m Depth Rock Drilling Equipment With ISO9001 Certification
Engineering Drilling Machine, Soil Investigation Drilling Machine, Rock Drilling ,Deep Well Drilling
MDT-200A Drilling rig is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 200m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 50mm |
| Gross weight(including the engine | 850kg |
| Revolving Plate | |
| Spindle speed | 900 478 388 205 1 57 68 r/min |
| Spindle speed(reversal) | 256 85 |
| Maximum torque | 2000N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter | |
| Lifting capacity(single pipe) | 3,0000N |
| Bobbin linespeed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Rope diameter | 12.5mm |
| Rope capacity | 30m |
| Drive motor | |
| Type | ZS1110 |
| Rated power | 13.2KW |
