Product Details:
|
| Highlight: | 20m Bored Pile Drilling Machine,Micro Bored Pile Drilling Machine,Hydraulic Crawler Pile Boring Equipment |
||
|---|---|---|---|

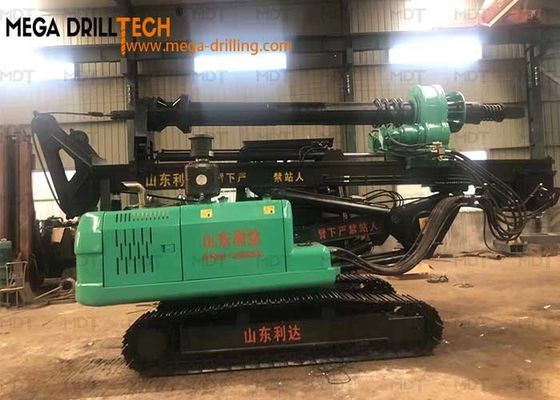

Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling even rotary drilling depth is 5~50m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1800mm.
20m bore pipe drilling machine , micro-pile drilling machine,cheap drilling machine
| Specification | Unit | Data | |
| Max. Drilling Diameter | mm | 1200 | |
| Max. Drilling Depth) | m | 20 | |
| Engin | Model | / | |
| Rated Power | kW | 88KW/2400r/min | |
| Rotary Drive | Max. output torque | kN .m | 60 |
| Rotary speed) | r/min | 17-45 | |
| Pull-Down Cylinder | Max.pull-down piston push | kN | 90 |
| Max.pull-down piston pull | kN | 90 | |
| Max.pull-down piston stroke | mm | 2000 | |
| Main Winch | Max.pulling force | kN | 100 |
| Max. single-rope speed | m/min | 50 | |
| Diameter of the steel wire rope | mm | 20 | |
| Auxiliary Winch | Max.pulling force | kN | 60 |
| Max. single-rope speed | m/min | 50 | |
| Diameter of the steel wire rope | mm | 16 | |
| Traveling | Max. traveling speed | km/h | 3.0 |
| Max.grade ability | % | 30 | |
| Overall Drilling Weight | t | 16 | |
| Dimension) |
mm
|
8700×2300×3200
|
|
