Product Details:
|
| Highlight: | Portable Backpack Drilling Machine,60m Backpack Drilling Machine,Portable Backpack Drilling Rig |
||
|---|---|---|---|
MDT-60

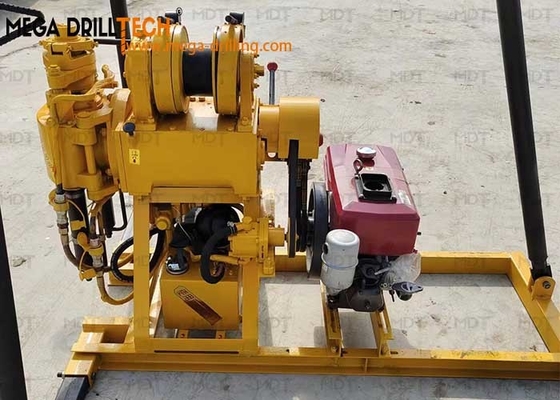

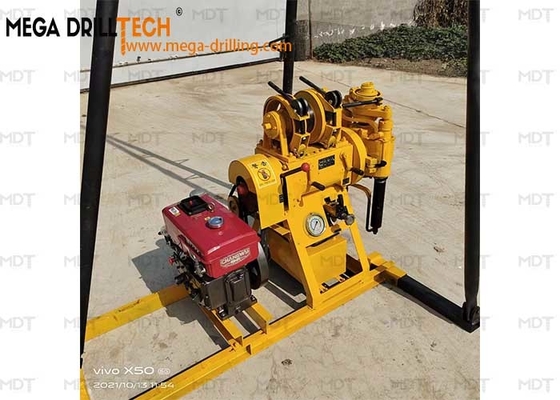

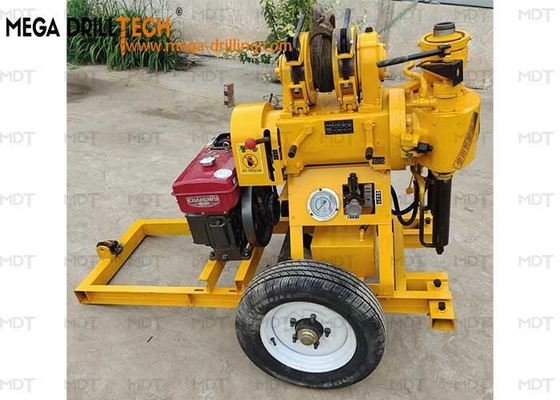

60m module drilling ,easy to diamantle and install ,portable backpack drilling machine
It doesn't only maintain the features of the original model such as lightweight, flexible, good impact property, etc., but also overcomes the shortcoming of drilling hard rock by general small drilling rig. Featured with light and portable, it's good for both of rotary and percussive drillings.

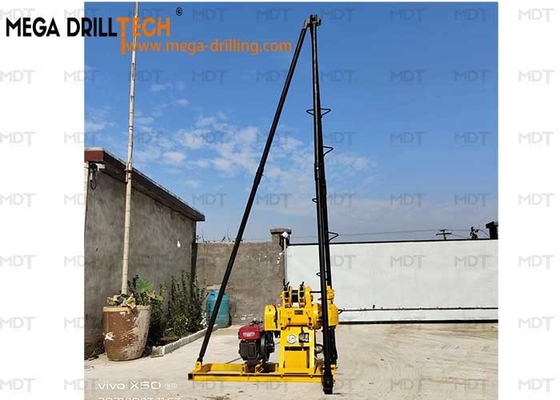

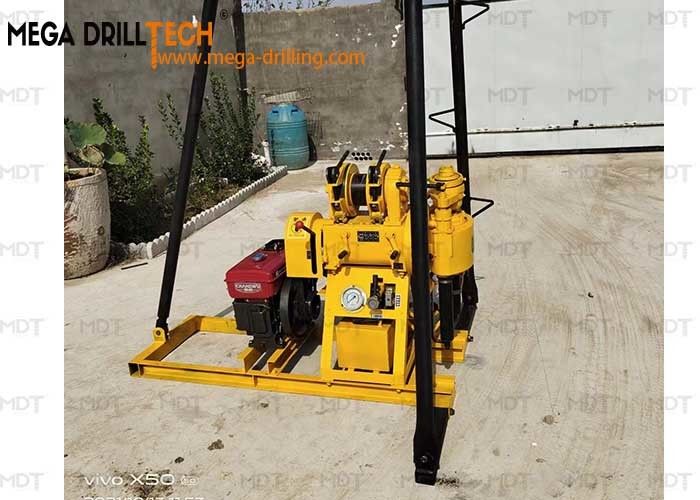

Tripod and mast drilling towers are available. They are applicable to geological exploration of hard rock layer and overburden layer of the Quaternary period in the areas such as town, plain, hill, swamp, etc. while have strong adaptability and the following characteristics mainly.
| 1. DRILLING CAPABILITY | ||||
| Drilling Dia(mm) | 75mm | |||
| Drilling Depth(m) | 60m | |||
| Drilling Rods Dia(mm) | 42 | |||
| 2. ROTARY TABLE | ||||
| Speed(rpm) | 54 140 300 | |||
| Max Torque | 1200N·m | |||
| Feeding Travel | 400mm | |||
| Cylinder Max Feeding Force | 10KN | |||
| Cylinder Max Lifting Force | 30KN | |||
| 3. Hoist | ||||
| Bobbin Dia | φ100mm | |||
| Steel Rope Dia | φ9.3mm | |||
| Bobbin Rope Capacity | 18m | |||
| Single Rope Hoisting Capability | 10KN | |||
| Max Hoisting Speed Single Rope (2nd Layer) m/s |
0.14 0.32 0.68 0.46 1.17 2.53 | |||
| 4. Oil Pump | ||||
| Model | CB32B Gear Oil Pump | |||
| Displacement | 32L/min | |||
| Rated Speed | 2000r/min | |||
| Rated Pressure | 16MPa | |||
| Max Pressure | 20MPa | |||
| 5. Engine | Model | Power | Speed | Weight |
| (1) Electric Motor | Y132M-4 | 7.5KW | 1440r/min | 81kg |
| (2) Diesel Engine | CHANGCHAI S195 | 10.6KW | 2200r/min | 145kg |
| 6. Rig Dimension | 1660×732×1170mm | |||
| 7. Weight(Engine not included) | 400kg | |||
