Product Details:
|
| Type: | Rotary Drilling Rig | Product Name: | Spindle Drilling Rig |
|---|---|---|---|
| Applicable Industries: | Construction Works | Application: | Water Wells Rock Drill Rig |
| Drilling Diameter: | 300mm, 50mm, 75mm, 60mm, 100mm, 700mm, 1000mm | Power Type: | Diesel |
| Usage: | Water Well | Key Selling Points: | Flexible Manufacturing |
| Drill Rod Length: | Water Well Drill Rig | Certification: | ISO |
| Color: | Customised | ||
| High Light: | Rotary Water Well Drill Rig 28KW,Water Well Drill Rig 200m |
||

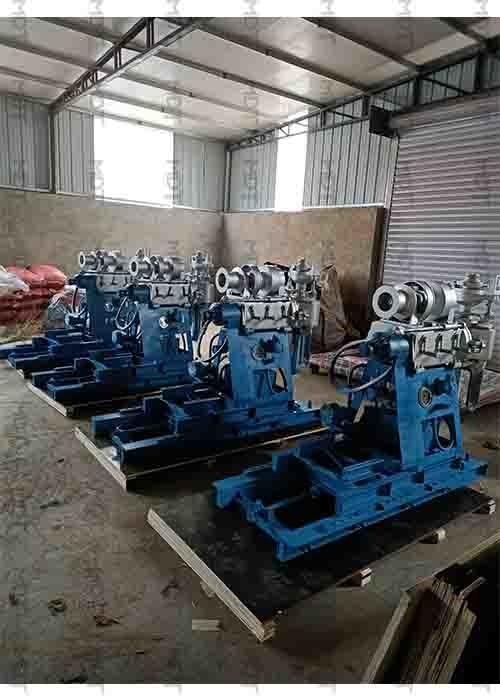

Rotary Water Well Drill Rig 28KW 200m Engineering Drilling Machine Rock Drilling
Engineering Drilling Machine, Soil Investigation Drilling Machine, Rock Drilling
MDT-200 Plus Drilling rig is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 200m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 50mm |
| Gross weight(including the engine | 850kg |
| Revolving Plate | |
| Spindle speed | 900 478 388 205 1 57 68 r/min |
| Spindle speed(reversal) | 256 85 |
| Maximum torque | 2000N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter | |
| Lifting capacity(single pipe) | 3,0000N |
| Bobbin linespeed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Rope diameter | 12.5mm |
| Rope capacity | 30m |
| Drive motor | |
| Type | |
| Rated power | 28KW |
Main Feature:
1. Car drilling rig is a multi-functional hydraulic vehicle vertical shaft rotary drilling rig
2. The chassis of the car is equipped with Tang Jun car, rig drive system and hoisting, mud pump and other important accessories installed on this chassis, the layout is reasonable and compact, easy to operate
3. Configure BW-160 mud pump with high pressure and large flow to ensure drilling depth and drilling diameter
4. The rig is equipped with a mobile device, which can realize the movement of the rig itself before and after, which is convenient for wellhead operation.
5, the rig tower hydraulic landing gear folding rig, safe and convenient operation.
The advantages of the water well drilling machine are as below:
1.Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.
