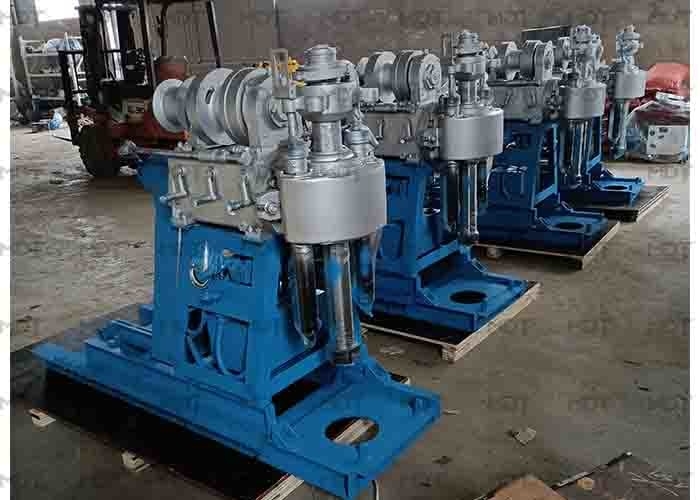

Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm

Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm
Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm
Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm

Large Image :  Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm

Product Details:
Place of Origin: China
Brand Name: MEGA DRILLTECH
Model Number: MDT-200 Plus
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD
Packaging Details: wooden case
Supply Ability: T/T

Flexible Diesel Spindle Drilling Rig 60mm 100mm 700mm 1000mm

Description
Certification: ISO Product Name: Spindle Drilling Rig
Applicable Industries: Construction Works Application: Water Wells Rock Drill Rig
Drilling Diameter: 300mm, 50mm, 75mm, 60mm, 100mm, 700mm, 1000mm Power Type: Diesel
Usage: Water Well Key Selling Points: Flexible Manufacturing
Drill Rod Length: Water Well Drill Rig Color: Customised
High Light:

Flexible Diesel Spindle Drilling Rig

,

60mm Diesel Spindle Drilling Rig

,

Spindle Borehole Drilling Rig

Flexible Diesel Spindle Drilling Rig 60mm, 100mm, 700mm, 1000mm



Engineering Drilling Machine, Soil Investigation Drilling Machine, Rock Drilling

MDT-200 Plus Drilling rig is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.


Technical Specification:



Basic Parameters
Drilling depth 200m
Drilling diameter 300mm
Drill pipe diameter 50mm
Gross weight(including the engine 850kg
Revolving Plate
Spindle speed 900 478 388 205 1 57 68 r/min
Spindle speed(reversal) 256 85
Maximum torque 2000N*m
Driving travel 450mm
Maximum Cylinder driving force 2,9000N
Maximum Cylinder lifting force 3,9000N
Lifter
Lifting capacity(single pipe) 3,0000N
Bobbin linespeed (2 layers) 0.27 0.64 0.83 1.58 1.64 m/s
Rope diameter 12.5mm
Rope capacity 30m
Drive motor
Type
Rated power 28KW



Main Feature:


1. Car drilling rig is a multi-functional hydraulic vehicle vertical shaft rotary drilling rig
2. The chassis of the car is equipped with Tang Jun car, rig drive system and hoisting, mud pump and other important accessories installed on this chassis, the layout is reasonable and compact, easy to operate
3. Configure BW-160 mud pump with high pressure and large flow to ensure drilling depth and drilling diameter
4. The rig is equipped with a mobile device, which can realize the movement of the rig itself before and after, which is convenient for wellhead operation.
5, the rig tower hydraulic landing gear folding rig, safe and convenient operation.



Service



1. Better Material:
We choose better materials in the market to produce, improve the quality from the source, for your escort along the way.

2. Fine Workmanship:
We have standardized production process, strict supervision mechanism and constantly updated product technology.

3. Quality Guarantee:
Before leaving the factory, our products are strictly tested and the quality of each product is guaranteed.

4. Rest Assured After-sales:
We are a large manufacturer, there are specialized after sales and maintenance personnel, can reduce the customer's concern, welcome the customer to visit the factory to discuss.
