Product Details:
|
| Type: | Rotary Drilling Rig | Applicable Industries: | Construction Works |
|---|---|---|---|
| Application: | Water Wells Rock Drill Rig | Drilling Diameter: | 300mm, 50mm, 75mm, 60mm, 100mm, 700mm, 1000mm |
| Usage: | Water Well | Key Selling Points: | Flexible Manufacturing |
| High Light: | 20KW Rotary Drilling Rig,Rotary Drilling Rig 300mm,Rotary Spindle Drilling Rig |
||

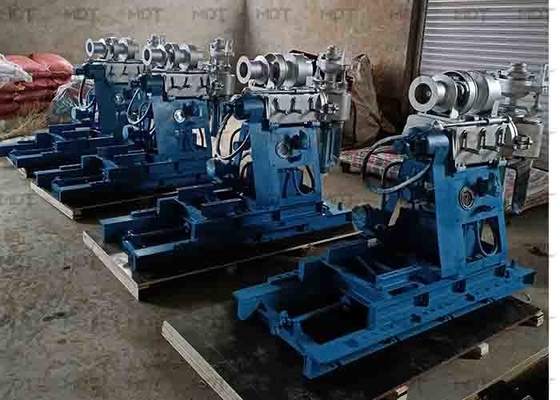

20KW Rotary Drilling Rig 300mm, 50mm, 75mm
Engineering Drilling Machine, Soil Investigation Drilling Machine, Rock Drilling
MDT-200 Plus Drilling rig is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 200m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 50mm |
| Gross weight(including the engine | 850kg |
| Revolving Plate | |
| Spindle speed | 900 478 388 205 1 57 68 r/min |
| Spindle speed(reversal) | 256 85 |
| Maximum torque | 2000N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 2,9000N |
| Maximum Cylinder lifting force | 3,9000N |
| Lifter | |
| Lifting capacity(single pipe) | 3,0000N |
| Bobbin linespeed (2 layers) | 0.27 0.64 0.83 1.58 1.64 m/s |
| Rope diameter | 12.5mm |
| Rope capacity | 30m |
| Drive motor | |
| Type | |
| Rated power | 28KW |
The advantages of the water well drilling machine are as below:
1.Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.
Service
1. Better Material:
We choose better materials in the market to produce, improve the quality from the source, for your escort along the way.
2. Fine Workmanship:
We have standardized production process, strict supervision mechanism and constantly updated product technology.
3. Quality Guarantee:
Before leaving the factory, our products are strictly tested and the quality of each product is guaranteed.
4. Rest Assured After-sales:
We are a large manufacturer, there are specialized after sales and maintenance personnel, can reduce the customer's concern, welcome the customer to visit the factory to discuss.
