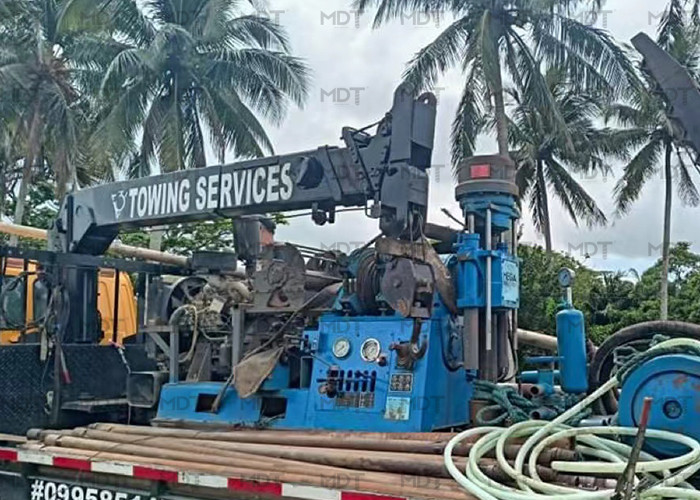

20KW Spindle Drilling Rig 200m Deep 300mm

20KW Spindle Drilling Rig 200m Deep 300mm
20KW Spindle Drilling Rig 200m Deep 300mm
20KW Spindle Drilling Rig 200m Deep 300mm 20KW Spindle Drilling Rig 200m Deep 300mm

Large Image :  20KW Spindle Drilling Rig 200m Deep 300mm

Product Details:
Place of Origin: China
Certification: ISO-9001
Model Number: MDT-200 Plus
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD
Packaging Details: wooden case
Supply Ability: T/T

20KW Spindle Drilling Rig 200m Deep 300mm

Type: Rotary Drilling Rig Product Name: Spindle Drilling Rig
Applicable Industries: Construction Works Application: Water Wells Rock Drill Rig
Drilling Diameter: 300mm, 50mm, 75mm, 60mm, 100mm, 700mm, 1000mm Power Type: Diesel
Usage: Water Well Key Selling Points: Flexible Manufacturing
Drill Rod Length: Water Well Drill Rig Certification: ISO
Color: Customised
High Light:

300mm Rotary Spindle Drilling Rig


20KW Diesel Spindle Drilling Rig

20KW Spindle Drilling Rig 200m Deep 300mm Diameter


Engineering Drilling Machine, Soil Investigation Drilling Machine, Rock Drilling

MDT-200 Plus Drilling rig is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.

Technical Specification:


Basic Parameters
Drilling depth 200m
Drilling diameter 300mm
Drill pipe diameter 50mm
Gross weight(including the engine 850kg
Revolving Plate
Spindle speed 900 478 388 205 1 57 68 r/min
Spindle speed(reversal) 256 85
Maximum torque 2000N*m
Driving travel 450mm
Maximum Cylinder driving force 2,9000N
Maximum Cylinder lifting force 3,9000N
Lifting capacity(single pipe) 3,0000N
Bobbin linespeed (2 layers) 0.27 0.64 0.83 1.58 1.64 m/s
Rope diameter 12.5mm
Rope capacity 30m
Drive motor
Rated power 28KW


Main Feature:

1. Car drilling rig is a multi-functional hydraulic vehicle vertical shaft rotary drilling rig
2. The chassis of the car is equipped with Tang Jun car, rig drive system and hoisting, mud pump and other important accessories installed on this chassis, the layout is reasonable and compact, easy to operate
3. Configure BW-160 mud pump with high pressure and large flow to ensure drilling depth and drilling diameter
4. The rig is equipped with a mobile device, which can realize the movement of the rig itself before and after, which is convenient for wellhead operation.
5, the rig tower hydraulic landing gear folding rig, safe and convenient operation.




The advantages of the water well drilling machine are as below:

1.Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
One person operation, reduce the labor intensity ;
6. High efficiency and work fast.

7. Assure easily operation and long life service life, free maintainance.




1. Better Material:
We choose better materials in the market to produce, improve the quality from the source, for your escort along the way.

2. Fine Workmanship:
We have standardized production process, strict supervision mechanism and constantly updated product technology.

3. Quality Guarantee:
Before leaving the factory, our products are strictly tested and the quality of each product is guaranteed.

4. Rest Assured After-sales:
We are a large manufacturer, there are specialized after sales and maintenance personnel, can reduce the customer's concern, welcome the customer to visit the factory to discuss.
