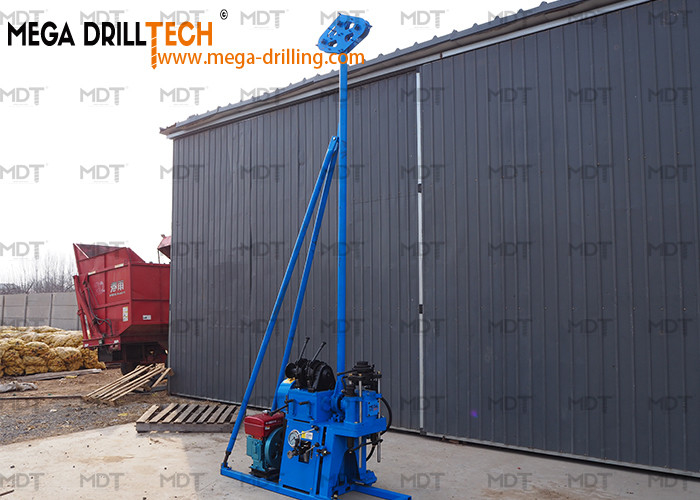

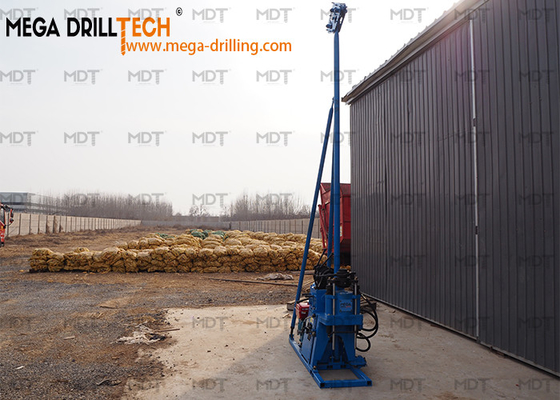

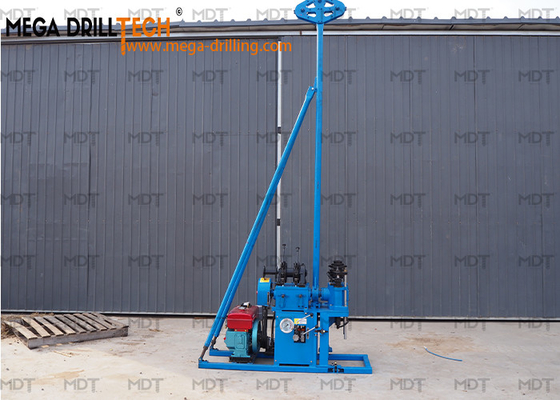

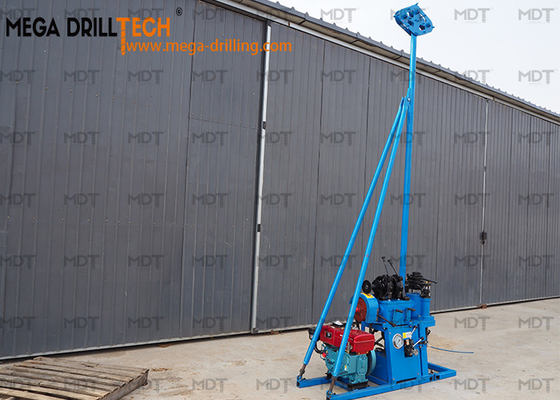

Product Details:
|
| Drilling Depth: | 30m | Bore Diameter: | 110m |
|---|---|---|---|
| Drill Pipe Diameter: | 33.5 Mm | Drill Rig Mass (excluding Power System): | 290 |
| Rotary Table: | Rotation Speed 136, 338, 578 R/min | ||
| High Light: | water borehole drilling machine,30 meters water borehole drilling machine,30 meters anchor drilling machine |
||
Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
· Groundwater survey; coastal geological survey; wetland environment investigation.
Basic data:
| Items | Parameters | ||
| 1 | Basic Parameters | Drilling depth | 30 m |
| Bore diameter | 110 mm | ||
| Drill pipe diameter | 33.5 mm | ||
| Drill rig mass (excluding power system) | 290 kg | ||
| Dimension (L×W×H) | 1510×600×1055 mm | ||
| 2 | Rotary table | Rotation speed | 136, 338, 578 r/min |
| Max. torque | 350 N*m | ||
| Feeding travel | 400 mm | ||
| Hydraulic feeding force | 8000 N | ||
| Hydraulic lifting up force | 10000 N | ||
| 3 | Hoist | Lifting capacity | 4000N |
| Wire speed of drum (2nd layer) | 0.46, 1.15, 1.97 m/s | ||
| Diameter of drum: | Φ90mm | ||
| Diameter of wire rope | Φ8mm | ||
| Capacity/length of wire rope | 18m | ||
| 4 | Derrick | Type | Single seamless steel tube |
| Height | 5.6m | ||
| 5 | Power machine | Motor model | 185N |
| Rated Power (12h) | 5.88kW | ||
| Max. Power (1h) | 6.62 kW | ||
| Rotation Speed | 2200r/min | ||
| Net weight | 48kg | ||
