Product Details:
|
| High Light: | 42kw Spindle Drilling Rig,Soil Investigation Spindle Drilling Rig,42KW soil test drilling machine |
||
|---|---|---|---|
Soil Investigation Spindle Drilling Rig Oil Test Drilling Machine 42KW Engine
Skid Mounted Portable Soil Investigation Drilling Machine, water well drilling ,42kw engine
| Unity machine parameter | |||
| Model | MDT-200 | MDT-180 | MDT-130 |
| Drilling depth | 200m | 30-180m | 10-130m |
| Max open hole caliber | 300mm | 220mm | 260mm |
| End hole caliber | 75mm | 75mm | 75mm |
| Drill rod caliber | 60mm | 42mm | 50mm |
| Drilling angle | 90°~75° | 90°~75° | 90°~75° |
| Drill weight (without power) | 975kg | 610kg | 510kg |
| Power | Diesel engine 22HP | Diesel engine 18HP |
Diesel engine 18HP |
| Dimension | 2.7*0.9*1.5 | 2.4*0.8*1.3 | 2.4*0.8*1.4 |
| Spindle | |||
| spindle speed | 64, 128, 287, 557r/min | 130,300,480,730, 830,1045r/min |
142,285,570r/min |
| Spindle stroke | 450mm | 450mm | 450mm |
| Hoist | |||
| Max.lifting capacity | 2500kg | 2100kg | 2000kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s | 1.06,0.67,0.32m/s | 0.41,0.82,1.64m/s |
| Wirerope caliber | 13mm | 13mm | 13mm |
| Wirerope length | 35m | 35m | 27m |
| Mud pump | |||
| Type | Horizontal single-urn twin-action | Horizontal single-urn twin-action | Horizontal single-urn twin-action |
| Displacement | Diesel engine170L/min Electric motor 150L/min |
170L/min | 95/77L/min |
| Maximum pressure | 3Mpa | 1.5Mpa | 1.2Mpa |
| Work pressure | 1.5Mpa | 0.7Mpa | 0.7Mpa |
| Inlet pipe caliber | 51mm | 51mm | 51mm |
| Outlet pipe caliber | 38mm | 32mm | 32mm |
| Triangle conveyer belt | B1728mm | B1728mm | B1575mm |

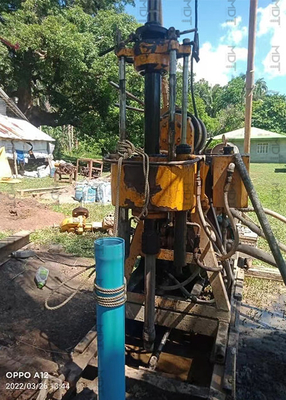

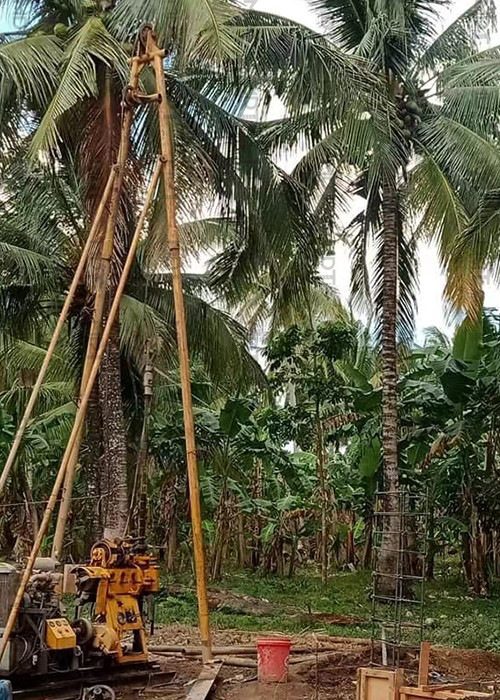

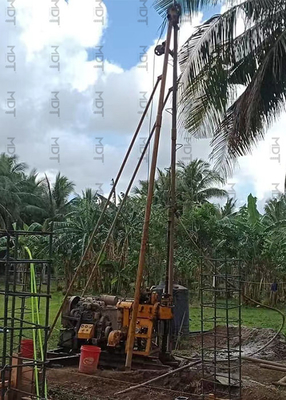

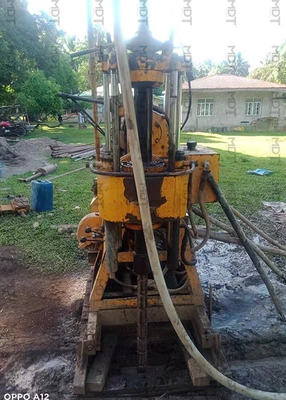

Skid mounted portable soil investigation drilling machine
Applications
MDT-130/180/200 drilling rig is mainly used for geological general investigation and exploration,
road and tall building foundation exploration, kinds of hole in concrete structure, river levees,
civil wells and earth temperature central air-conditioner .
Main Features
a. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
b. the machine is equipped with national patent technology---taper clutch, with characteristics of
strong transmission torque, easy operation and free maintenance.
c. for the winch, we use large module planetary gear and add supporting frame, greatly increasing
hoisting and braking ability of the winch.
d. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid
enough for gravel layer and other complex geological conditions.
e,additional ,XY-180 with five gears, and the highest speed can reach 1045r/min, improving drill efficiency.
