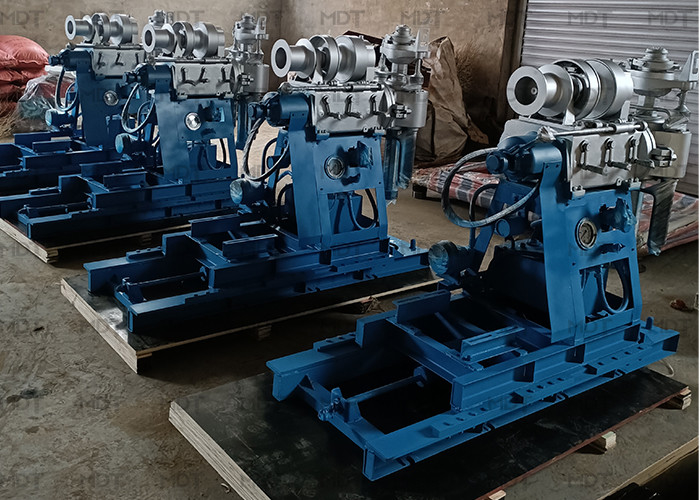

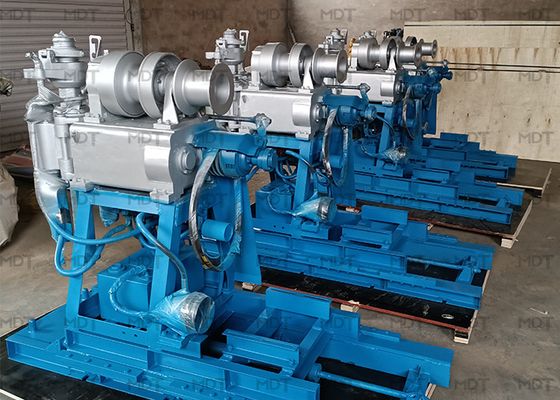

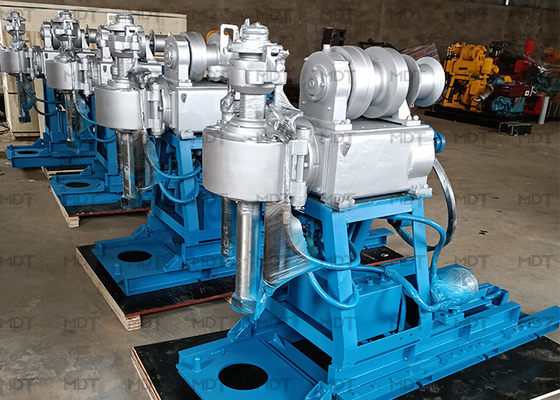

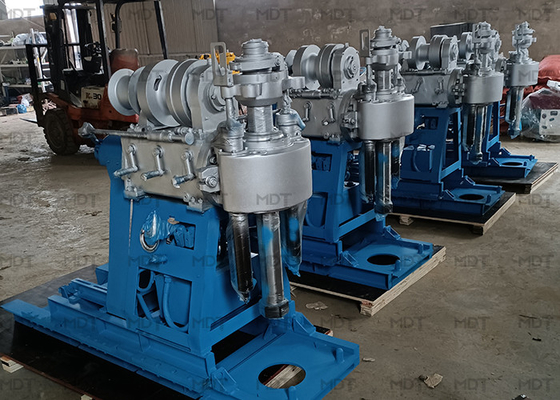

MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic

MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic
MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic

Large Image :  MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic

Product Details:
Place of Origin: China
Brand Name: MEGA
Model Number: MDT-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD
Packaging Details: wooden case
Delivery Time: within one week
Payment Terms: T/T
Supply Ability: 10 units /week

MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic

Description
High Light:

MDT-200 diamond drilling equipment

,

200 Meters diamond drilling equipment

,

200 Meters borehole drilling equipment

MDT-200 200 Meters Diamond Drilling Equipment Portable Hydraulic





Portable Hydraulic 200 Meters Mine Borehole Water Well Core Drilling Rig

MDT-200 Soil investigation drilling machine



MDT-200 hydraulic drilling rig is a light weight drilling rig. This product is widely used for general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells and earth central ait conditioning wells etc.





SPECIFICATIONS FOR EDGE-200 drilling rig



Drilling rig

Drilling hole diameter mm 70-300
Drilling depth m 30-200
Drill pipe diameter mm 42
Borehole inclination ° 90°~75°
Rig dimension(L×B×H) mm 1730×860×1360
Drill weight(except engine) kg 585



Gyroscope/Rotary head

spindle speed(4-speed) r/min 115, 230, 505, 1010
spindle travel mm 450
max moving speed m/min 3
vertical max feed force KN 15
vertical max lift KN 25
Windlass/ winch hoisting capacity(single speed rope) KN 20
drum speed r/min 20, 39, 85, 170
drum circumferential velocity m/s 0.172, 0.345, 0.738, 1.476
drum diameter mm 140
wire rope diameter mm 9.3
rope weight m 27
the diameter of the brake mm 230
brake band width mm 40
Oil pump Pump type   gear pump
Model   YBC-20/125
Reated pressure Mpa 12.5
Rated flow ml/r 20
Rated speed r/min 800-2500
Power(diesel engine or electromotor) Diesel engine mode   Changchai ZS1115
Rated power KW 16.2
Rated speed r/min 2200
Electromotor model   Y160M-4
Rated power KW 11
Rated power R/min 1460
