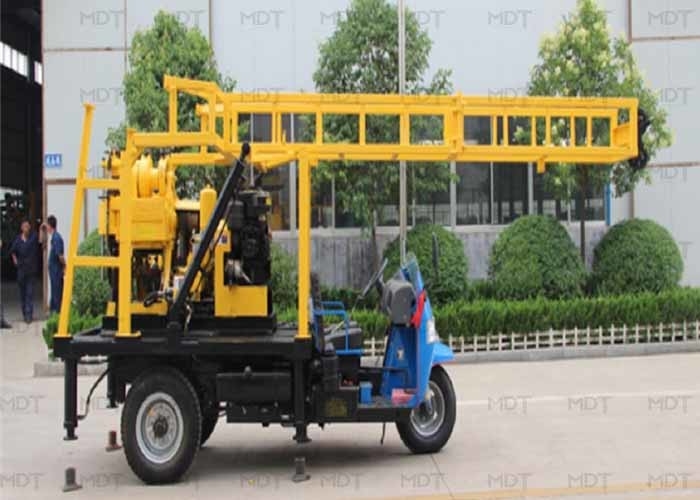

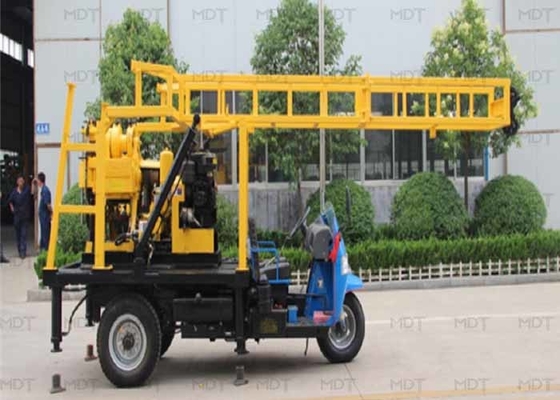

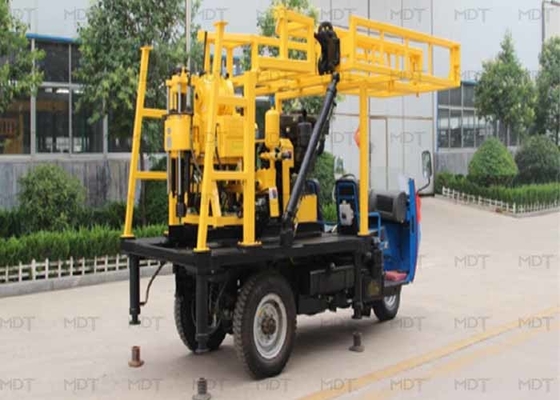

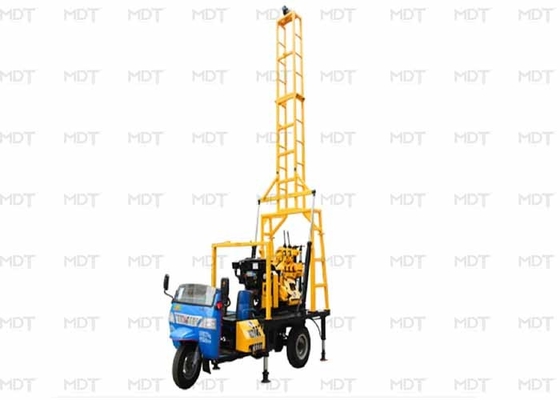

Hydraulic Geological Spindle Drilling Rig Portable Borehole Drilling Machine
Hydraulic water well drilling machine
Application:
Geological survey exploration, road and high-rise building foundation exploration, and various concrete structure inspection holes, river embankment, roadbed grouting hole drilling and direct grouting, civil Wells and geothermal central air conditioning,.
1. vehicle-mounted drilling machine is a multi-function hydraulic vehicle-mounted vertical shaft rotary drilling machine
2, equipped with bw-160 type mud pump, high pressure, large flow, ensure drilling depth and drilling diameter
3. The drilling machine is equipped with self-moving device, which can realize the movement of the main engine of the drilling machine back and forth for the convenience of wellhead operation
4. The hydraulic lifting and falling type folding drilling tower of the drilling tower is safe and convenient to operate.
| Model | MDT-130A | MDT-180A | MDT-200A |
| Drill hole depth | 130m | 180m | 200m |
| Open hole dia. | 75-220mm | 75-220mm | 75-325mm |
| Final hole dia | 75mm | 75mm | 75mm |
| Drill pipe dia | 42-60mm | 42-60mm | 42-60mm |
| Borehole inclination | 90°- 75° | 90°- 75° | 90°- 75° |
| Power(kw/r/min) | 13.2/2200 | 13.2/2200 | 15/2200 |
| Size | 4*1.7*2.3m | 4*1.7*2.3m | 4*1.7*2.3m |
| Vertical shaft | |||
| Speed(r/min) | 142,285,570 | 130,480,730,1045 | 64,28,287,557 |
| Stroke | 450mm | 450mm | 450mm |
| Motor Tricycle | |||
| Model | 7YP-1475D1 | 7YP-1475D1 | 7YP-1475D1 |
| Emission Standard | GB19756-2005(Ⅱ) | GB19756-2005(Ⅱ) | GB19756-2005(Ⅱ) |
| Rated Power | 18.3kw | 18.3kw | 18.3kw |
| Rated Speed | 2200r/min | 2200r/min | 2200r/min |
| Rig | |||
| Rated load | 18t | 18t | 18t |
| Effective height | 6.5m | 6.5m | 6.5m |
