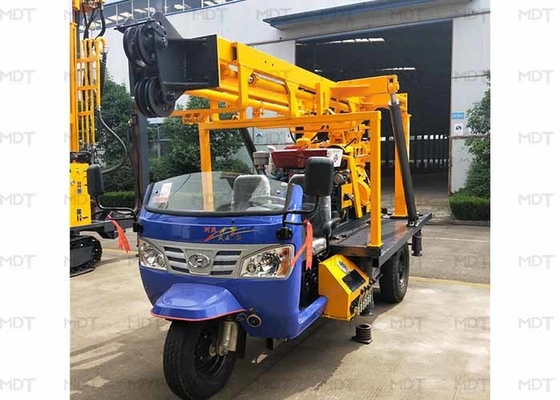

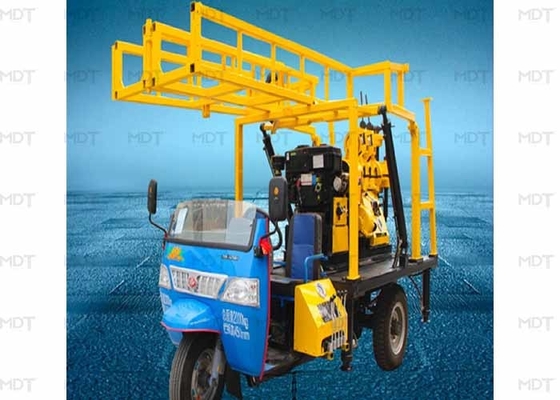

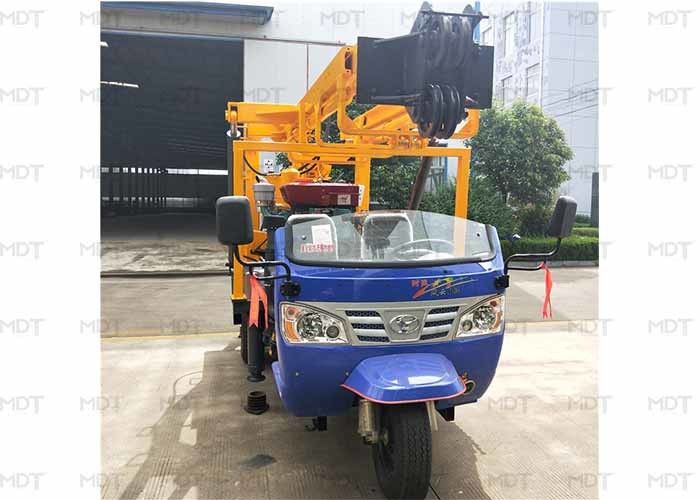

ISO9001 Certified Hydraulic Rock Drilling Rig 75mm Hole Dia

ISO9001 Certified  Hydraulic Rock Drilling Rig 75mm Hole Dia
ISO9001 Certified  Hydraulic Rock Drilling Rig 75mm Hole Dia ISO9001 Certified  Hydraulic Rock Drilling Rig 75mm Hole Dia ISO9001 Certified  Hydraulic Rock Drilling Rig 75mm Hole Dia

Large Image :  ISO9001 Certified Hydraulic Rock Drilling Rig 75mm Hole Dia

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT-130A

ISO9001 Certified Hydraulic Rock Drilling Rig 75mm Hole Dia

Description
High Light:

ISO9001 Rock Drilling Rig

,

75mm Rock Drilling Rig

,

75mm small borehole drilling machine

ISO9001 Certified Hydraulic Rock Drilling Rig 75mm Hole Dia



Water Well drilling rig , Rock Drilling Rig

Hydraulic water well drilling machine

Application:

Geological survey exploration, road and high-rise building foundation exploration, and various concrete structure inspection holes, river embankment, roadbed grouting hole drilling and direct grouting, civil Wells and geothermal central air conditioning,.



1.  vehicle-mounted drilling machine is a multi-function hydraulic vehicle-mounted vertical shaft rotary drilling machine

2, equipped with bw-160 type mud pump, high pressure, large flow, ensure drilling depth and drilling diameter

3. The drilling machine is equipped with self-moving device, which can realize the movement of the main engine of the drilling machine back and forth for the convenience of wellhead operation

4. The hydraulic lifting and falling type folding drilling tower of the drilling tower is safe and convenient to operate.







Model MDT-130A MDT-180A MDT-200A
Drill hole depth 130m 180m 200m
Open hole dia. 75-220mm 75-220mm 75-325mm
Final hole dia 75mm 75mm 75mm
Drill pipe dia 42-60mm 42-60mm 42-60mm
Borehole inclination 90°- 75° 90°- 75° 90°- 75°
Power(kw/r/min) 13.2/2200 13.2/2200 15/2200
Size 4*1.7*2.3m 4*1.7*2.3m 4*1.7*2.3m
Vertical shaft
Speed(r/min) 142,285,570 130,480,730,1045 64,28,287,557
Stroke 450mm 450mm 450mm
Motor Tricycle
Model 7YP-1475D1 7YP-1475D1 7YP-1475D1
Emission Standard GB19756-2005() GB19756-2005() GB19756-2005()
Rated Power 18.3kw 18.3kw 18.3kw
Rated Speed 2200r/min 2200r/min 2200r/min
Rig
Rated load 18t 18t 18t
Effective height 6.5m 6.5m 6.5m
