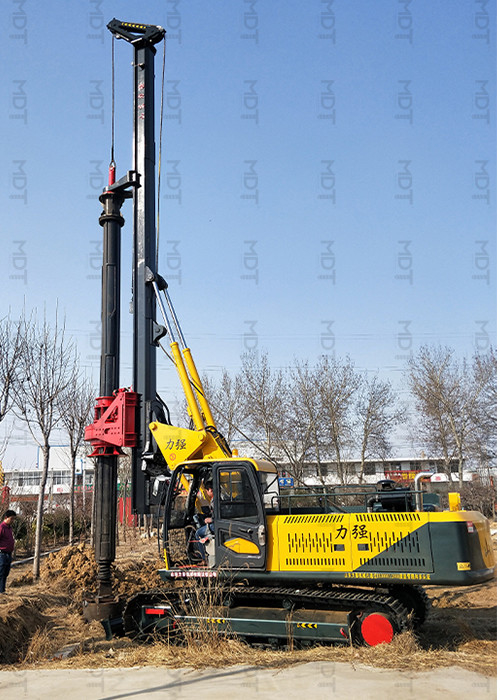

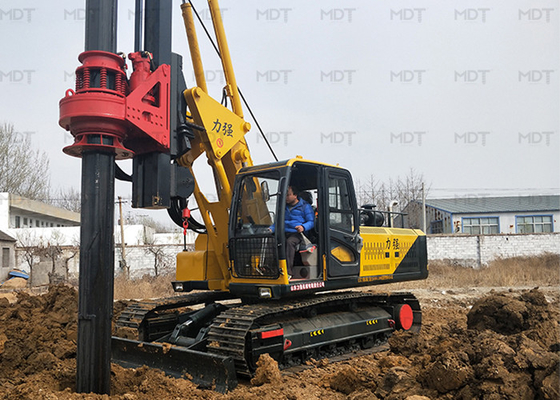

30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation

30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation
30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation 30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation 30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation

Large Image :  30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT-30
Payment & Shipping Terms:
Payment Terms: T/T, T/T
Contact Now

30m Depth Hydraulic Rotary Piling Rig 86KW For Foundation

Description
Highlight:

86KW hydraulic rotary piling rig

,

30m hydraulic rotary piling rig

,

30m foundation drill rig

Rotary Piling Rigs Machine , Borepile Drilling Machine




Max drilling diameter
0-1200mm

engine
86kw/2200rpm Cummins B3.9-C
Max drilling depth
30m
Hydraulic pump
Toshiba/ Doushan
Engine rated power
86kw(/112kw)
Hydraulic valve
Toshiba/ Doushan
Rotary drive torque
50knm(60knm)
Stroke
Toshiba/ Doushan
Rotary drive speed
1-22rpm
Rotary drive motor
Italy sai
Max pull of winch
80Kn
Main winch motor
Italy sai
Max pressure
100kn
Auxiliary winch
Italy sai
Working dimensions
11148*2600*5816


Transport dimensions
10268*2600*3217


Machine weight
25000kg
Drilling bar
&phi299X7mX5



Popular in Africa! MDT30 rotary drilling machine

1,it can drill max 30m depth ,500-1200mm
2,the top head rotary torque is 65KN.m
3,the total high is 12m ,small size and small volume ,very flexible,special design for complex terrain projects or complex
environment projects
4,back type transport,no need disassembly any parts,whole machine transportation
5,commins engine ,86KW
6,the main hydraulic pump and hydraulic volve are Kawasaki ,the traveling gear is Doushan7,both rotary drive motor and main winch motor are Italy Sai
8,the cab compact layout ,all control switch,operating handles,monitoring device etc all concentrated aroud seat,easy and
convenient operating,with air conditioner and stereo system ,very comfortable




Tag:

500mm earth piling machine,

18 meter dth piling machine,

500mm piling boring machine
