150m Depth 4000W Spindle Drilling Rig For Land Sand Drilling

150m Depth 4000W Spindle Drilling Rig For Land Sand Drilling

Spindle Drilling Rig Small Water Well Drilling Rig Suitable For Land Or Sand Drilling ,Water Well Drilling Machine

Small water well drilling rig
Suitable for land or sand.

Maximum drilling depth:150m
(Recommended 100~120m)
One-time drilling depth:2m

Applicable drill pipe:φ50mmx1500mm
(The drill pipe is threaded on both ends and does not use a connector)
Diesel power:22hp
With generator(4000W) and battery, can electric start
With mud pump
With air cooler
Lifting force:2000kg

Packaging volume:1900x1100x1900
(Calculated by 4m³)
Drill pipe, drill bits, individually packaged

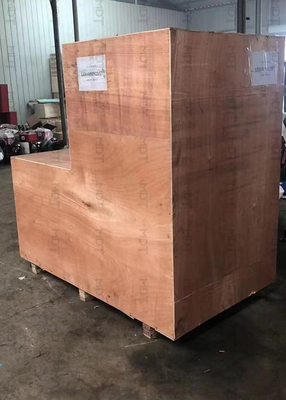

Drilling rig + wooden box packaging,
