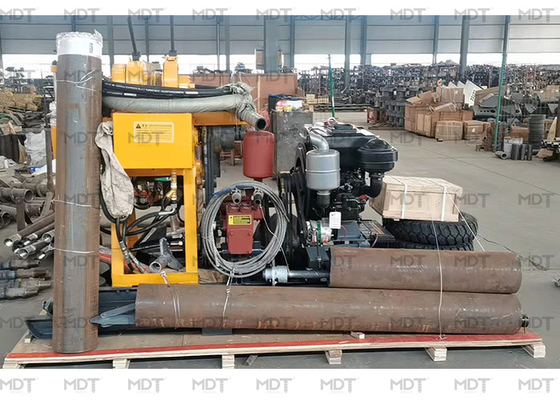

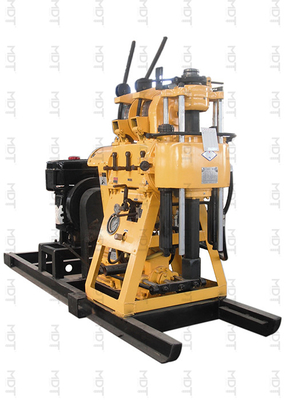

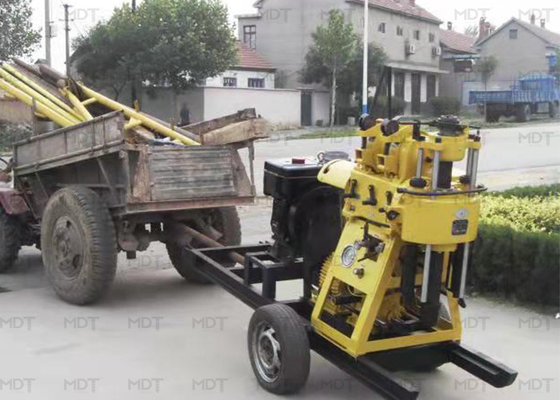

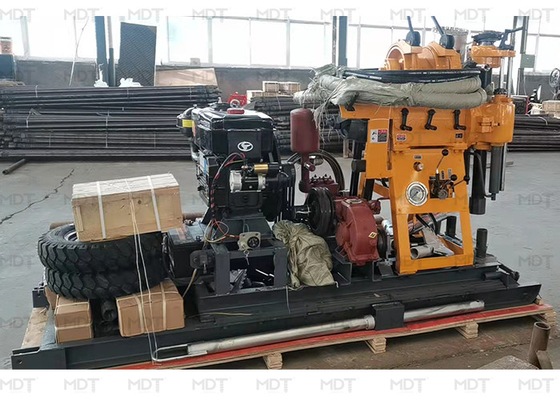

Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well

Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well
Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well

Large Image :  Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT-200A
Payment & Shipping Terms:
Payment Terms: T/T

Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well

Description
High Light:

200m Spindle Drilling Rig

,

Diesel Spindle Drilling Rig

,

200m soil testing drilling rig

Portable Diesel Geological Core Spindle Drilling Rig 200m Deep For Water Well



Spindle Drilling Rig Portable Diesel Geological Core Rock Water Well Drilling Rig Machine, soil testing drilling rig

Main Features



a. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

b. The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.

c. For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

d. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

e. Additional ,MDT-200 with five gears, and the highest speed can reach 1045r/min, improving drill efficiency portable rock drilling rig.







MDT-200 Drilling machine
Drilling depth
200m
Max open hole caliber
300mm
End hole caliber
75mm
Drill rod caliber
60mm
Drilling angle
90°~75°
Drill weight (without power)
975kg
Power
Diesel engine 22HP
Dimension
2.7*0.9*1.5
spindle speed
64, 128, 287, 557r/min
Spindle stroke
450mm
Max.lifting capacity
2500kg
Single line lifting speed
0.41, 0.82, 1.64m/s
Wirerope caliber
13mm
Wirerope length
35m
Type
Horizontal single-urn twin-action
Displacement
Diesel engine170L/min
Electric motor 150L/min
Maximum pressure
3Mpa
Work pressure
1.5Mpa
Inlet pipe caliber
51mm
Outlet pipe caliber
38mm
Triangle conveyer belt
B1728mm
MOQ
1Set
Price(usd)
7600
