Hydraulic Rotary Portable Water Drilling Machine 1100r/Min For Soil Survey
Rotary And Percussion Geo-Engineering Drilling Rig Machine For Soil Testings & Survey

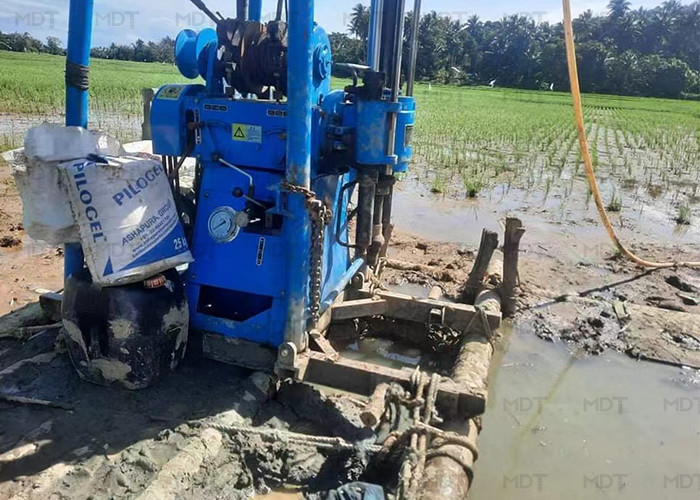

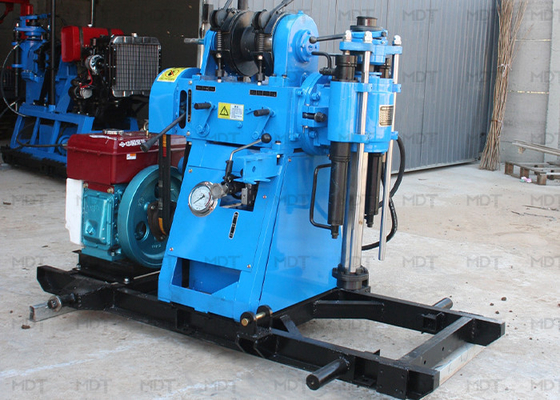

MDT-150 machine is a portable 2-wheels trailer mounted spindle rotary drilling rig for geotechnical survey, it can do core sampling drilling up to 150m in size 3", it has large torque to 1800N.m, various drilling speeds which fit different drilling condition. The drilling rig can work with multiple drilling tools of different standards, such as NQ, HQ, NMLC, HMLC, T2, T6, T6S etc.
The rig has percussion capability, can use bailer for soil and sands sampling. Also can perform SPT testing.
By using the hydraulic ram, the rig can use U100 and shelby tubes for undisturbed sampling.
The 2 wheels trailer is quite convenient to mobilize the rig by towing the rig with a pick up or other vehicle. For places hard to access, such as deep forest, the rig can be dismantled to smaller parts to be carried by man power, and can be reassembled easily later on the drilling site.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 150m 35m |
| Drilling diameter | 76mm 35 |
| Drill pipe diameter | 42mm |
| Gross weight of drilling machine(engine not included) | 600kg |
| Dimension (length ×width × height) | 1610 × 790× 1420 mm |
| Revolving Plate | |
| Rated speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20,000N |
| Maximum Cylinder lifting force | 30,000N |
| Lifter | |
| Lifting capacity | 24,000N |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 125mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Oil pumps: | |
| Displacement: | 20ml/r |
| Normal speed | 2500r/min |
| Normal pressure | 20MPa |
| Max pressure | 25MPa |
| Mud pumps | |
| Displacement | 100L/min |
| Maximum pressure | 1.5MPa |
| Drilling rig | |
| Type | Steel pipe quadripod |
| Height | 6m |
| Drive motor | |
| Type | Changzhou ZS1100 diesel engine |
| Rated power | 12.1KW |
| weight | 150kg |
