Product Details:
|

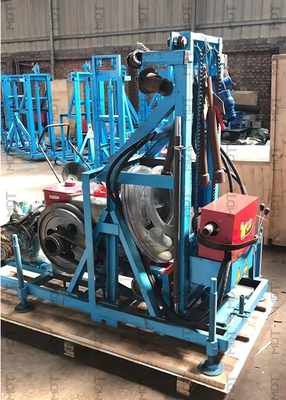

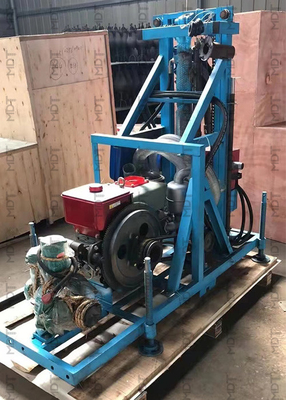

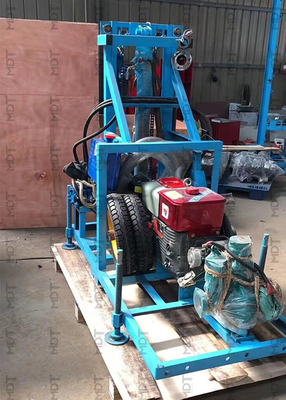

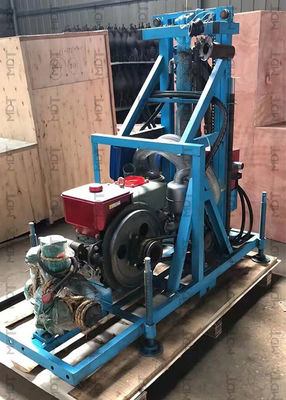

portable water well drilling rig machine compressor for water well drilling hydraulic bore well drilling machine price
This drilling machine is widely used for geothermal drilling, farm irrigation, house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 350mm and depth can be more than 100 meter.
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.
Model | MDT-100 |
Diesel Engine | 22HP |
Drill Rod Diameter | 51mm |
Drill Rod Length | 1.5m |
Rod Change Method | Full automatic screw thread |
Drilling Depth | 100m |
Drilling method | Percussive and rotating type |
Pump Power | 22HP |
Dimension | 1500mm*900mm*1750mm |
Weight | 650kg |
